Headlights (Cabrio from 10.98), adjusting

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Special tools and equipment

Optical headlight aimer VAS 5107

VAS 5107 must be used for checking and adjusting all headlight systems, including DE, FF and XENON headlights.

Information about the floor surface requirements, setting up and aligning the tester in front of the vehicle, as well as the headlight checking and adjusting procedure VAS 5107 operating instructions.

Left headlight (adjusting screws of right headlight are a mirror image):

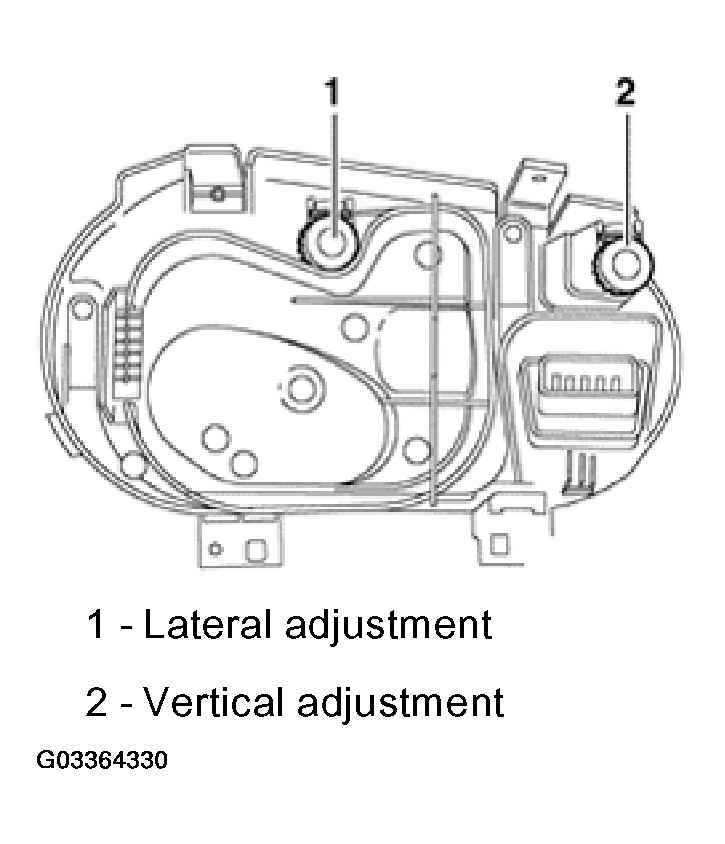

Fig 1: Identifying Headlight Adjusters (Cabrio From 10.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Lateral adjustment
Vertical adjustment

To adjust lateral and height setting, turn respective adjusting wheel using screwdriver.

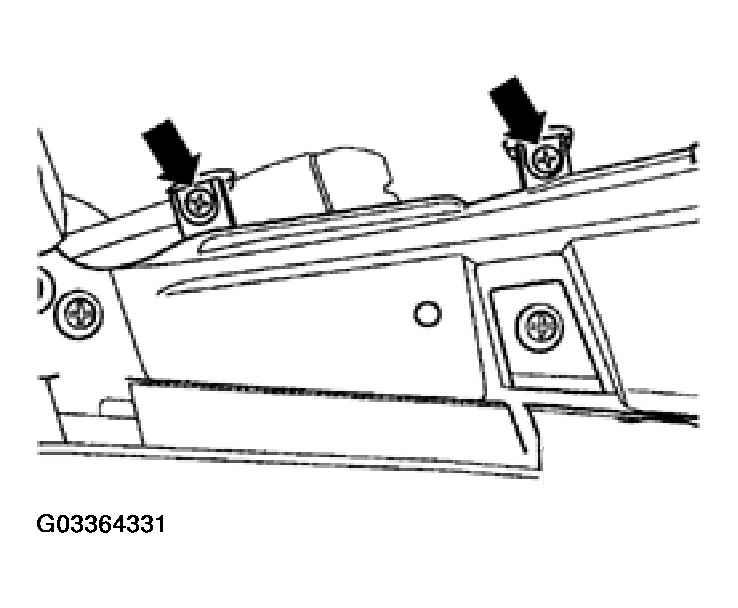

Fig 2: Adjusting Lateral And Height (Cabrio From 10.98)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

NOTE:

Adjusting headlight adjusts fog light and high beam simultaneously.
