Headlights, single bulb (Golf & Jetta), assembly overview: Notes

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1.

Headlight
- Adjusting, refer to Headlight adjusters, location and Headlights, adjusting
- Housing, removing and installing, refer to Headlight housing, removing and installing
Headlight bulb
- Twin filament, for low and high beams
- Bulb H4: 12 V, 60 W/55 W
- Removing/installing, refer to Headlight bulb, removing and installing
Bulb holder lock ring

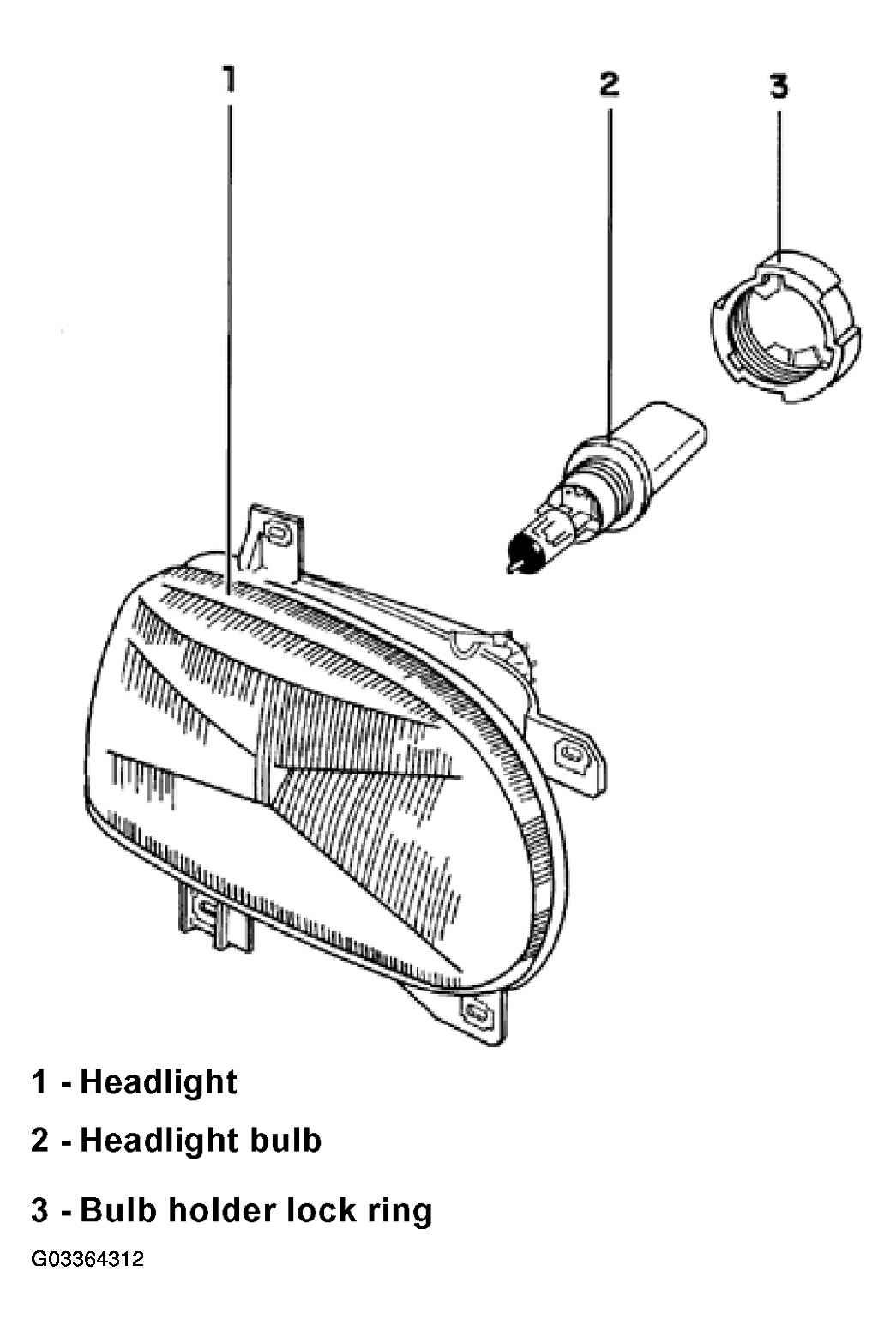

Fig 1: Over View Of Headlights, Single Bulb Assembly (Golf & Jetta)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
