Headlights, adjusting

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

To adjust horizontal and vertical headlight aim, turn respective adjuster using Phillips-head screwdriver through slot above headlight.

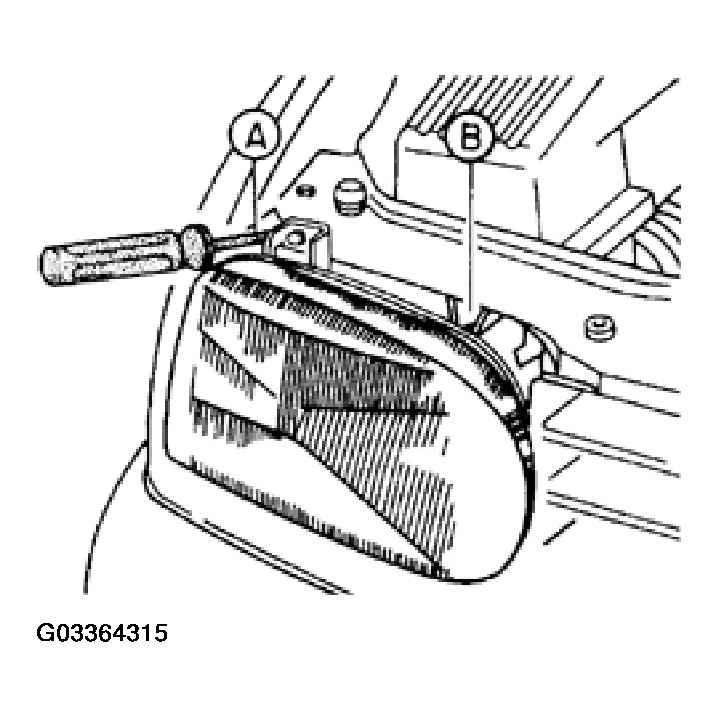

Fig 1: Locating Headlights Adjuster (Golf & Jetta)

Courtesy of VOLKSWAGEN OF AMERICA, INC.

A - Vertical aiming adjustment
B - Horizontal aiming adjustment

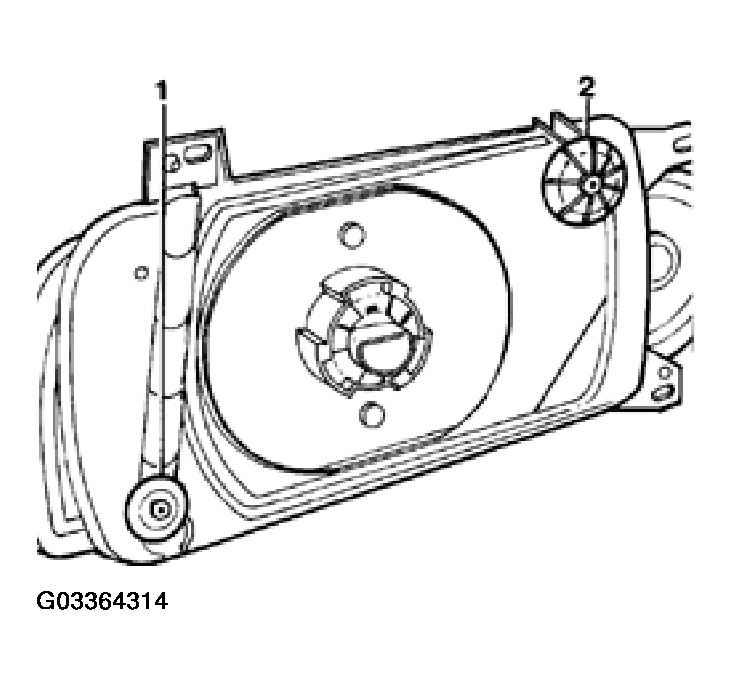

Fig 2: Adjusting Head Light (Golf & Jetta)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
