Drive pinion
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
To remove drive pinion, remove selector shaft and parking lock, see PARKING LOCK, DISASSEMBLING AND ASSEMBLING , parking lock, disassembling and assembling.

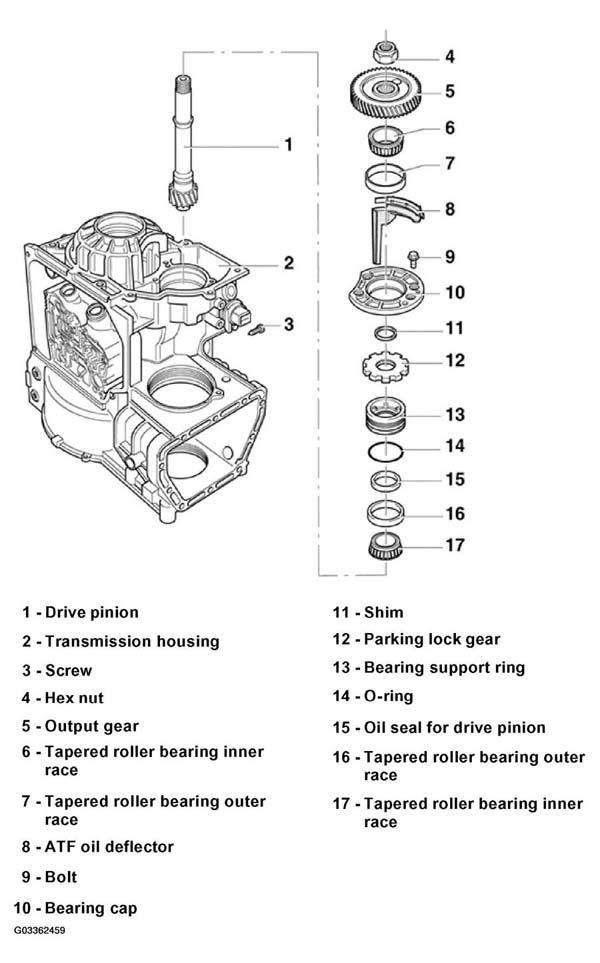

The following list pertains to Fig 1.
- Drive pinion
- Number of teeth, see TRANSMISSION LAYOUT
- Adjusting, see DRIVE PINION, ADJUSTING
- Removing, see Drive pinion, removing
- Transmission housing
- Screw
- 12 N.m (9 ft lb)
- Remove screw before removing or installing bearing support ring -13-.
- Install with sealing compound AKD45600001
- Hex nut
- 250 N.m (184 ft lb)
- Engage parking lock to remove or install
- Secure with drift
- Output gear
- Number of teeth, see TRANSMISSION LAYOUT
- Pulling off, see Output gear, removing (pulling off)
- If signs of damage exist, always replace input gear and output gear together
- Tapered roller bearing inner race
- Pulling off, see Tapered roller bearing inner race, removing (pulling off)
- Pressing on, see Tapered roller bearing inner race, installing (pressing on)
- Tapered roller bearing outer race
- Drive out with drift
- Pressing in, see Tapered roller bearing outer race, installing (pressing in)
- ATF oil deflector
- Install together with bearing cap -10-.
- Bolt
- 25 N.m (18 ft lb)
- Bearing cap
- Shim
- Determining thickness, see DRIVE PINION, ADJUSTING
- Parking lock gear
- Rounded side faces teeth of drive pinion
- Bearing support ring
- 200 N.m (148 ft lb)
- Remove screw - 3 - before removing or installing bearing support ring.
- Removing or installing, see Bearing support ring, removing and installing
- Bearing support ring cannot be removed until selector shaft has been removed, see PARKING LOCK, DISASSEMBLING AND ASSEMBLING
- Install bearing support ring carefully. Sealing lip and spring must not be damaged.
- Support ring with seal, see Bearing support ring with seal for drive pinion
- O-ring
- Always replace
- Place onto bearing support ring -13-
- Oil seal for drive pinion
- Remove with screwdriver
- Installation position, see Bearing support ring with seal for drive pinion
- Driving in, see Drive pinion oil seal, installing (driving in)
- Tapered roller bearing outer race
- Driving in, see Tapered roller bearing outer race, installing (driving in)
- Tapered roller bearing inner race
- Drive off with drift
- Pressing on, see Tapered roller bearing inner race, installing (pressing on)
