Bearing support ring with seal for drive pinion

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

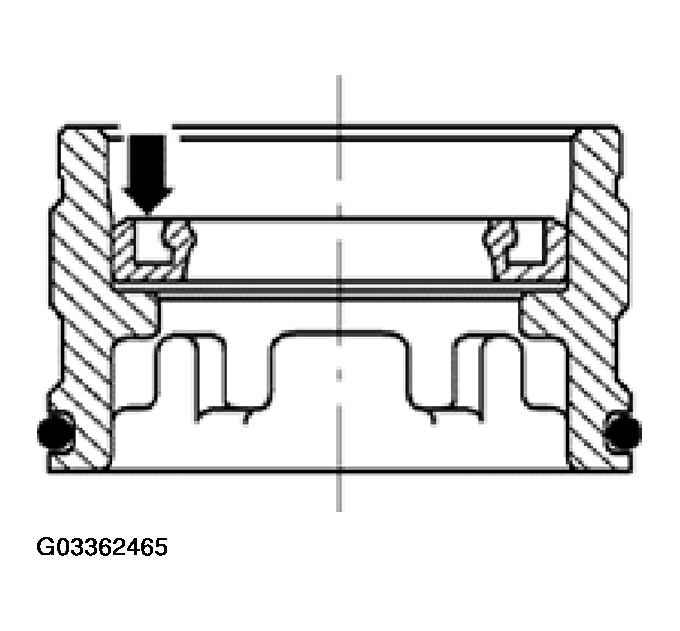

Installation position of seal:

Open side -arrow- faces towards tapered roller bearing outer race.

Fig 1: Installing Bearing Support Ring With Seal For Drive Pinion
G03362465Courtesy of VOLKSWAGEN OF AMERICA, INC.
