Components to adjust reverse gear brake -B1-, Overview
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

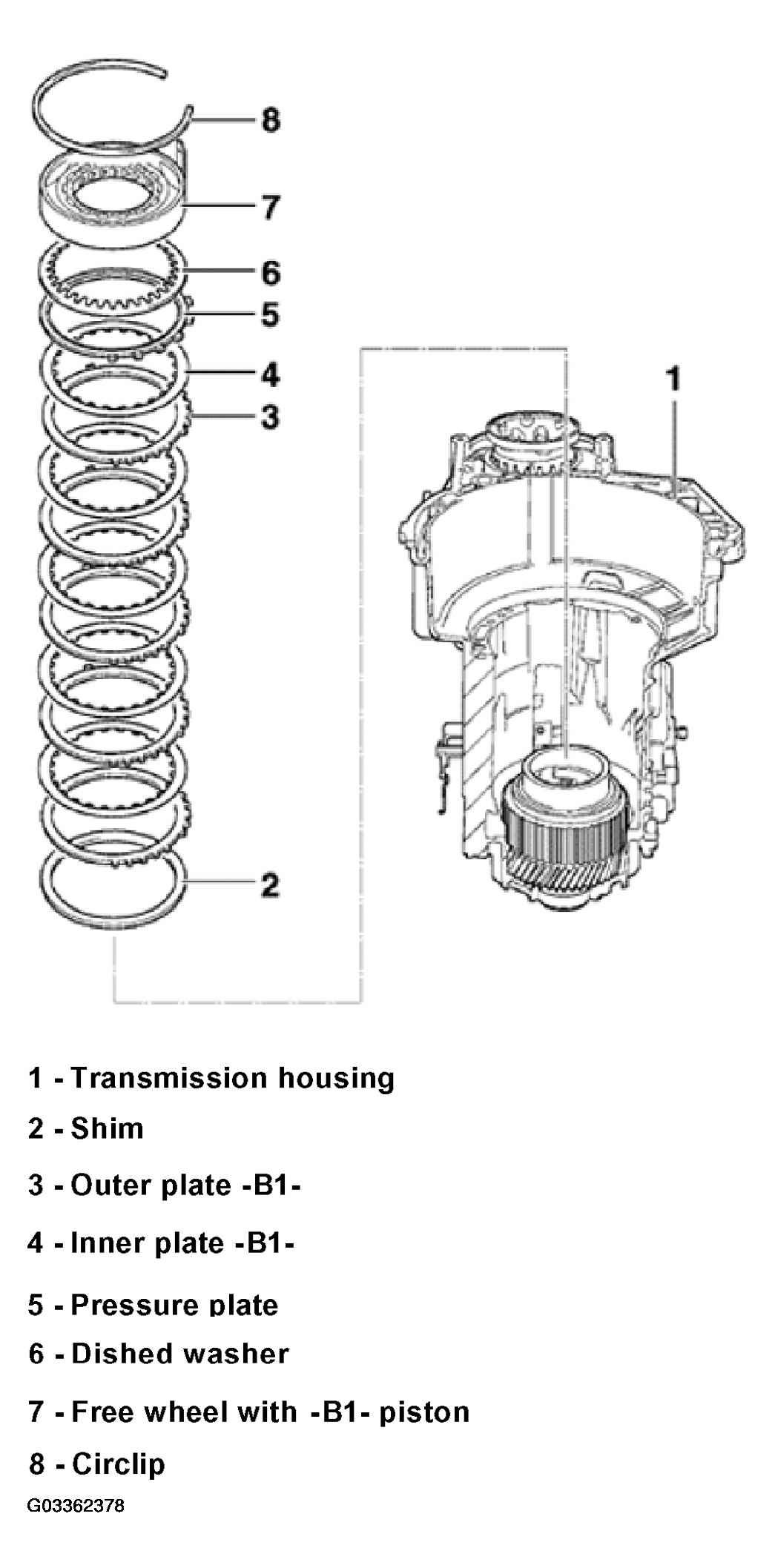

The following list pertains to Fig 1.
- Transmission housing
- With input gear and planet carrier installed
- Shim
- Outer plate -B1-
- Quantity, see TRANSMISSION LAYOUT
- Inner plate -B1-
- Quantity, see TRANSMISSION LAYOUT
- Pressure plate
- Install with flat side facing plates
- Spare part must comply with transmission code letters
- Dished washer
- Convex side faces towards free wheel
- Free wheel with -B1- piston NOTE: Before removing or installing free wheel, remove valve body and take out sealing plugs and remove Transmission Vehicle Speed Sensor (VSS) -G38-. See VALVE BODY, REMOVING AND INSTALLING .
See TRANSMISSION VEHICLE SPEED SENSOR (VSS) -G38-, REMOVING AND INSTALLING .
- Circlip
