Transmission Vehicle Speed Sensor (VSS) -G38-, location
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

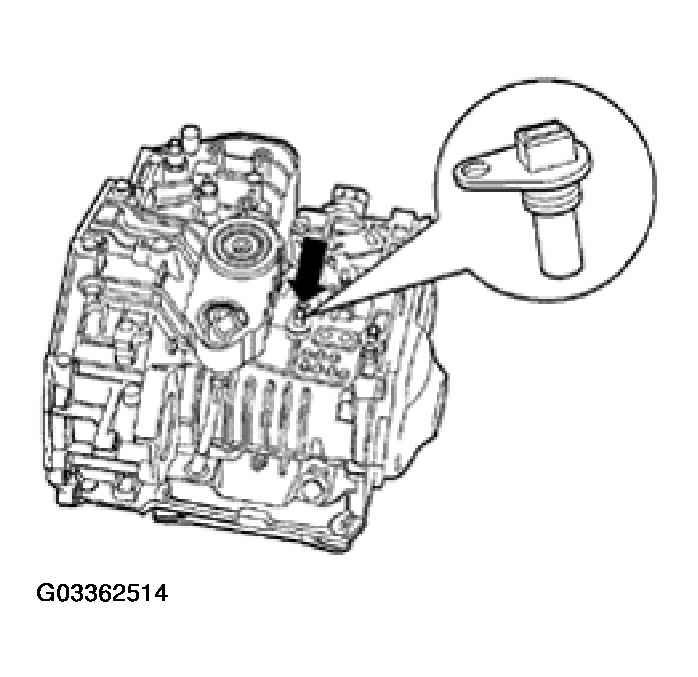

Location: on top of transmission -arrow-.
Transmission Vehicle Speed Sensor (VSS) -G38-, removing and installing
- Switch ignition off.
- Disconnect connector from sensor.
- Remove bolt and take sensor out.
- Replace seal.
Install in reverse order of removal.
- Tighten bolt to 10 N.m (7 ft lb).
