Selector lever housing, removing and installing
WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove rear center console.
- Remove hex nut.
- Remove lower protective plate.
- Disconnect Heated Oxygen Sensor connector -G39-.
- Separate exhaust system in front of catalyst
See appropriate Exhaust System article.
- Remove catalyst (6-cylinder vehicles)

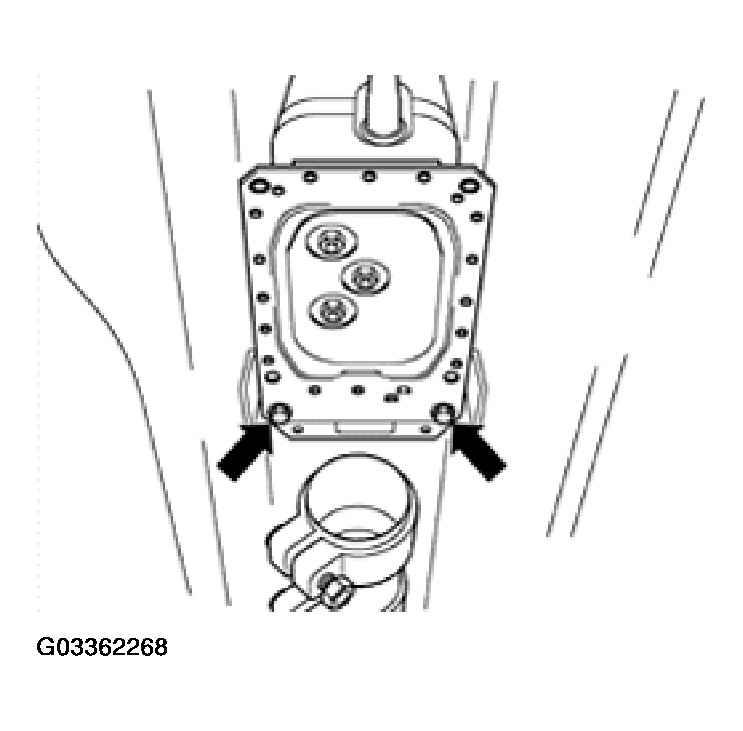

- Remove front protective plate and rear bolts (arrows).
