Selector lever, disassembling and assembling (vehicles with ignition key removal lock): Notes

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

The following list pertains to Fig 1.

Selector lever
- Assembling, see Selector lever, assembling before installing
Indicator lighting
- Securing indicator lighting connector, see Indicator lighting connector, securing
Spring
Pressure rod
- Grease in area of sliding surfaces
Guide sleeve
- Install after installing pressure rod
Set screw
- Always replace
- To remove set screw, remove shift lock solenoid -N110- and indicator lighting. Clamp set screw in vice and loosen by turning selector lever.
- Install with sealant AMV185 101 A1
Shift Lock Solenoid -N110-
- Adjusting, see Shift Lock Solenoid -N110-, adjusting
- Functional check, see Clearance between pressure rod and lever, adjusting
- Can be checked via OBD function 08, read measuring value block
  See READ MEASURING VALUE BLOCK (FUNCTION 08)
Screw
- 3 N.m (27 in lb)
- Qty. 2
- Install with sealant AMV185 101 A1
Nut
- 5 N.m (44 in lb)
- Always replace
Washer
Locking lever
- For ignition key removal lock
- Adjust together with locking cable, see LOCKING CABLE, ADJUSTING
Spring
- Hook into hole of detent plate
Retainer
- For locking cable
- Removing and installing locking cable, see LOCKING CABLE, REMOVING AND INSTALLING (VEHICLES WITH IGNITION KEY REMOVAL LOCK)
- Adjusting locking cable, see LOCKING CABLE, ADJUSTING
Spring
- For locking pin
Detent plate
- Assemble selector lever before installing in selector lever housing, see Selector lever, assembling before installing
Locking pin
- With bracket
Hex screw (socket head)
- 6 N.m (53 in lb)
Screw
- 6 N.m (53 in lb)
Washer
Spring
- Insert in selector lever together with lever -21-
Lever
- For locking in selector lever position "N" or "P"
- Adjusting, see Shift Lock Solenoid -N110-, adjusting
Bushing
Nut, 10 N.m (7 ft lb)
- 10 N.m (7 ft lb)
- Always replace
Bolt
- Grease shank

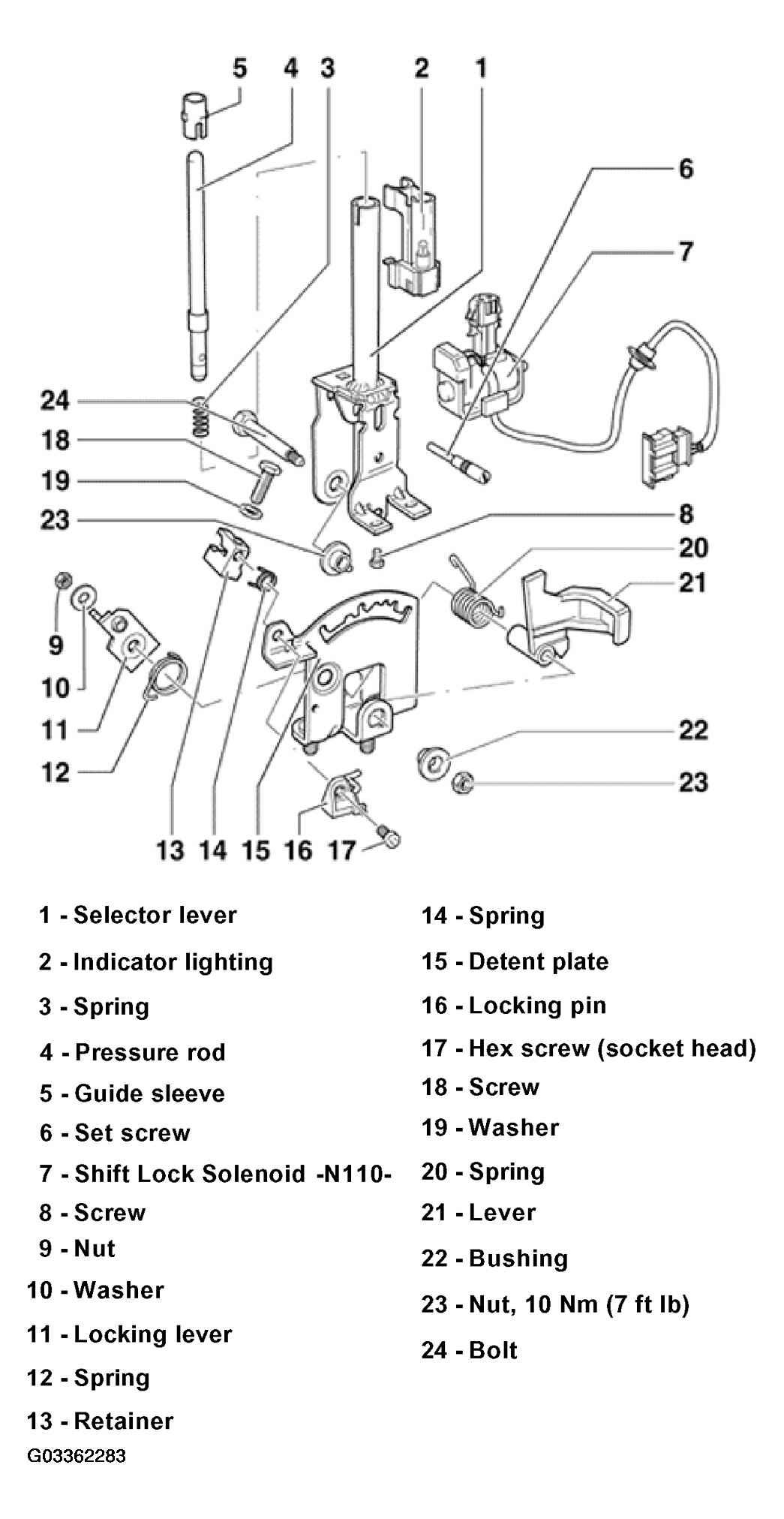

Fig 1: Exploded View Of Selector Lever Components (Vehicles With Ignition Key Removal Lock)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
