Clearance between pressure rod and lever, adjusting

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Dimension a 0.3 mm

Functional check

Shift selector lever into "P" and supply solenoid with 12 V. It must not be possible to shift selector lever into a driving gear
- Interrupt solenoid operation; it must be possible to shift into driving gears.
  Pressure rod must not catch on lever.
Shift selector lever into "N" and check as in "P".
After adjusting clearance, install assembled selector lever.

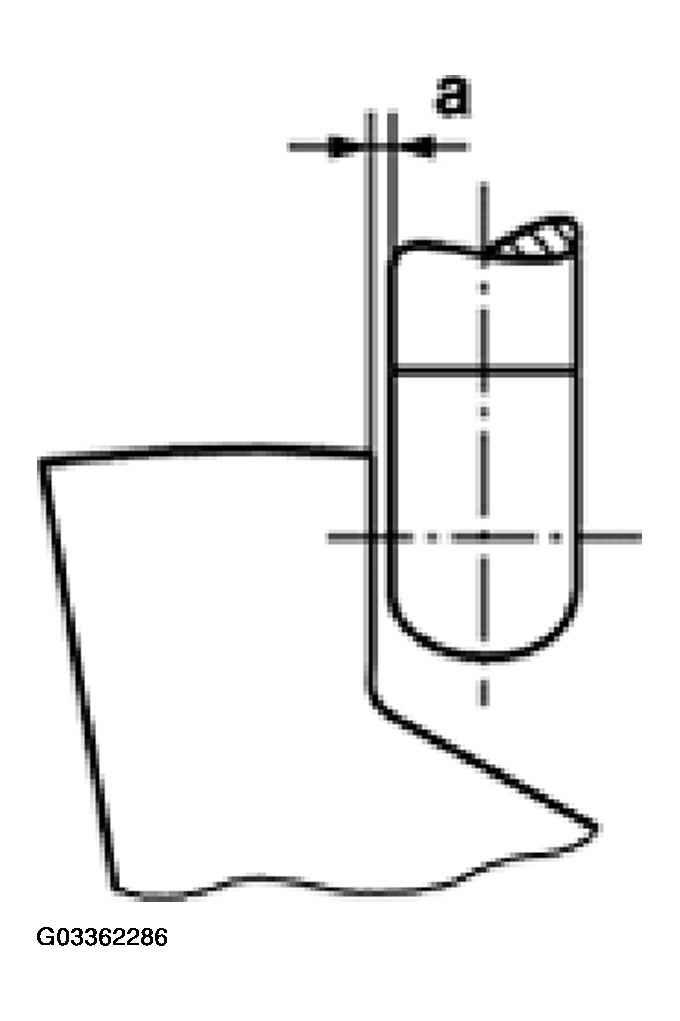

Fig 1: Adjusting Clearance Between Pressure Rod And Lever

Courtesy of VOLKSWAGEN OF AMERICA, INC.
