Locking cable, removing and installing (vehicles with ignition key removal lock): Removing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove selector lever handle.
Remove cover with cover strip.
On vehicles with program switch pull connector off program switch.
Remove central console.
See INSTRUMENT PANEL, REMOVING .
Loosen cable anchorage screw -a-.

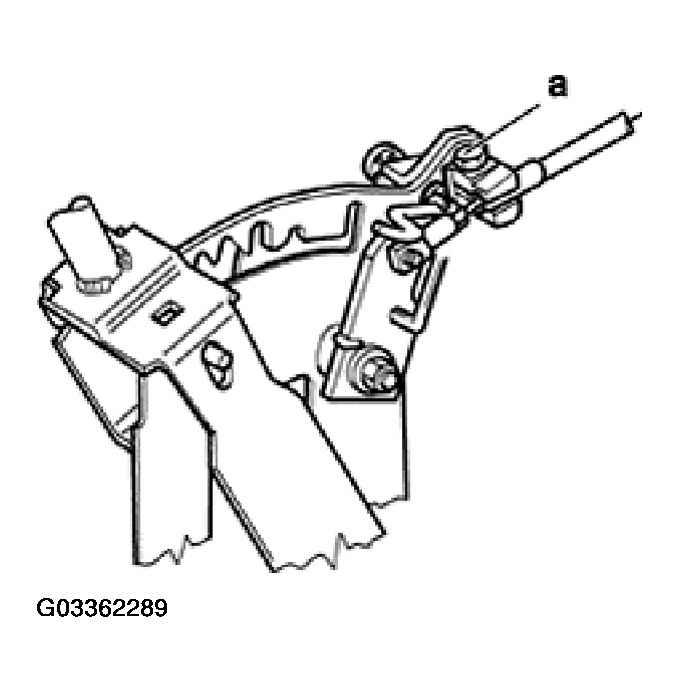

Fig 1: Loosening Cable Anchorage Screw

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove locking cable out of locking lever and pull out of cable anchorage.
Remove steering wheel and ignition/starter switch trim.
See STEERING COLUMN, STEERING COLUMN TUBE AND STEERING WHEEL, SERVICING or STEERING WHEEL WITH AIRBAG, SERVICING

See STEERING COLUMN SWITCHES, CONNECTOR WIRING
Press locking cable clip out of ignition/starter switch support bracket and remove locking cable from ball head.
Remove locking cable.
