Steering column switches, connector wiring
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

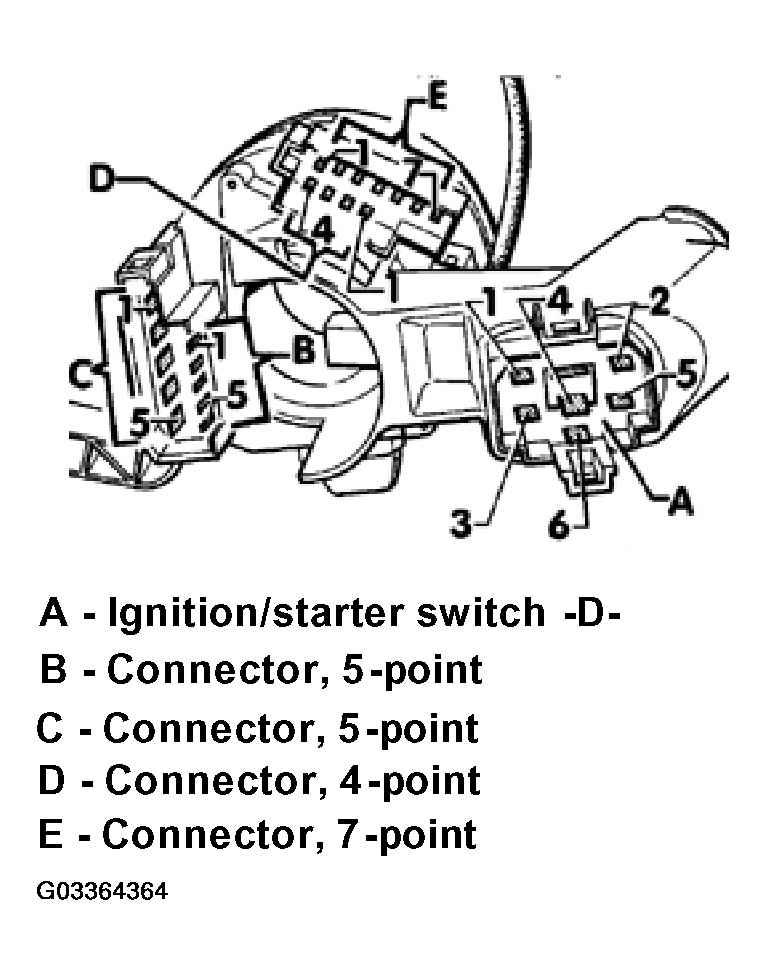

The following list refers to items in Fig 1.
- Ignition/starter switch -D
- Ignition/starter switch -D-, terminal 15 (B+ with key on)
- Ignition/starter switch -D-, terminal X (B+ with key on)
- Ignition/starter switch -D-, terminal 50
- Ignition/starter switch -D-, terminal 30 (B+)
- Ignition/starter switch -D-, terminal SU
- Ignition/starter switch -D-, terminal P
- Connector, 5 -point
- Windshield wiper/washer switch -E22-, terminal 53b
- Windshield wiper/washer switch -E22-, terminal 53a
- Windshield wiper/washer switch -E22-, terminal 53
- Windshield wiper/washer switch -E22-, terminal 53e
- Windshield wiper/washer switch -E22-, terminal J
- Connector, 5 -point
- Emergency flasher switch -E3-, terminal 49
- Headlight dimmer/flasher switch -E4-, terminal 56b
- Headlight dimmer/flasher switch -E4-, terminal 56
- Headlight dimmer/flasher switch -E4-, terminal 56a
- Headlight dimmer/flasher switch -E4-, terminal 30 (B+)
- Connector, 4 -point
- Windshield wiper/washer switch -E22-, terminal L
- Windshield wiper/washer switch -E22-, terminal T
- Windshield wiper/washer switch -E22-, terminal 31 (GND)
- Emergency flasher switch -E3-, terminal 15 (B+ with key on)
- Connector, 7 -point
- Horn button, terminal 71
- Emergency flasher switch -E3-, terminal 49a
- Turn signal switch -E2-, terminal L
- Parking light switch -E19-, terminal PL
- Parking light switch -E19-, terminal P
- Parking light switch -E19-, terminal PR
- Turn signal switch -E2-, terminal R
