Locking cable, removing and installing (vehicles with ignition key removal lock): Installing

WARNING: This page does not describe the selected car, but rather 25 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Ensure proper routing of locking cable when installing.

Install locking cable in vehicle.

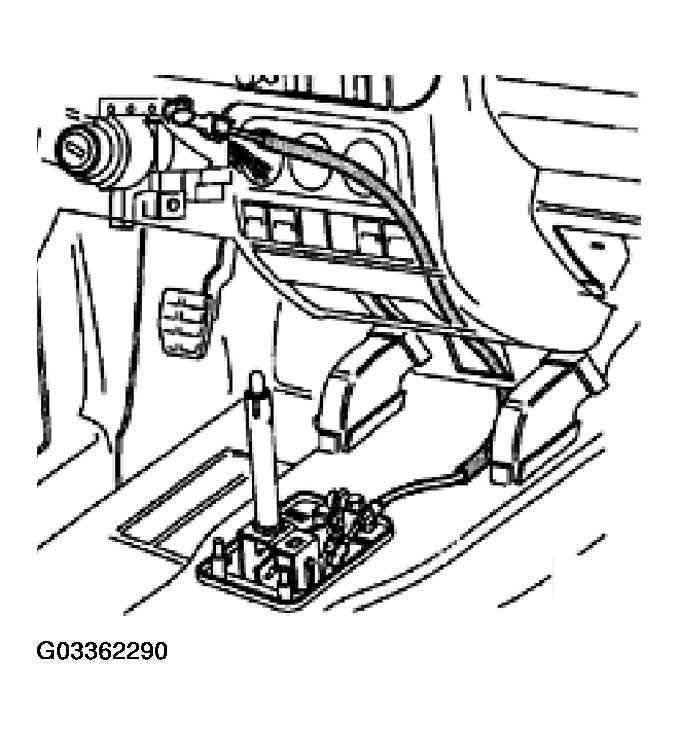

Fig 1: Installing Locking Cable In Vehicle

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Mount locking cable eye -1- on locking lever -a-.

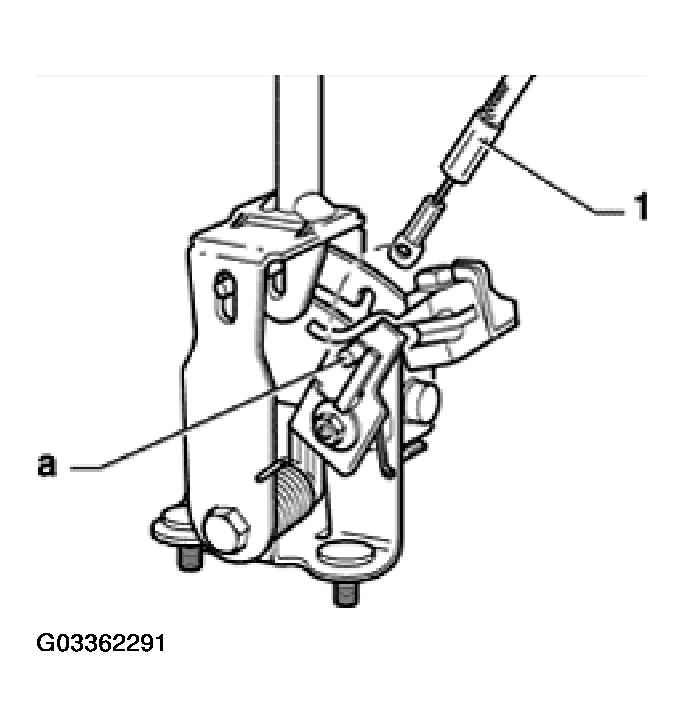

Fig 2: Installing Mount Locking Cable Eye On Locking Lever

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Install locking cable in cable anchorage.
Do not tighten screw -a- until after adjusting locking cable.

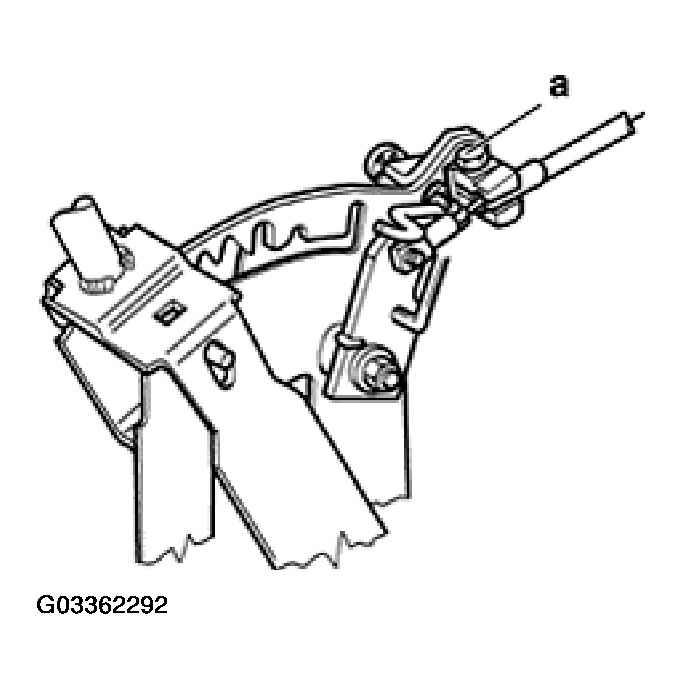

Fig 3: Installing Locking Cable In Cable Anchorage

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Mount locking cable clip on locking cable.
Press locking cable onto ball head.
Press locking cable with clip into ignition/starter switch support bracket.

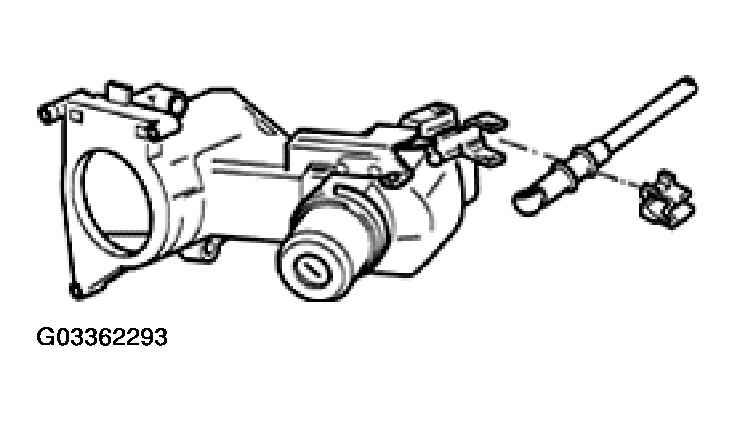

Fig 4: Installing Mount Locking Cable Clip On Locking Cable

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Route locking cable along steering column.
Adjust locking cable on cable anchorage of selector lever, see LOCKING CABLE, ADJUSTING .
- Install central console.
See INSTRUMENT PANEL, REMOVING .
Install cover with indicator and selector lever handle.
Attach trim pieces of ignition/starter switch.
See STEERING COLUMN SWITCHES, CONNECTOR WIRING
Install steering wheel.
See STEERING COLUMN, STEERING COLUMN TUBE AND STEERING WHEEL, SERVICING or STEERING WHEEL WITH AIRBAG, SERVICING

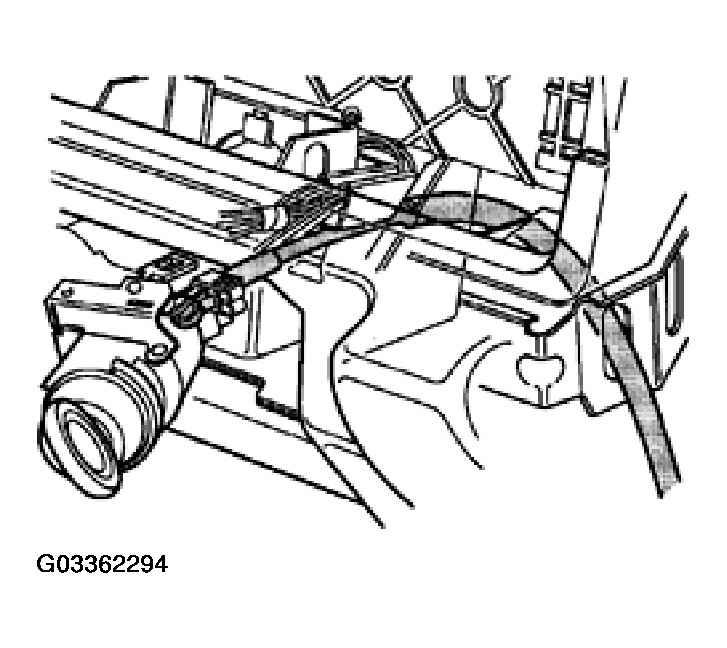

Fig 5: Installing Locking Cable Along Steering Column
Courtesy of VOLKSWAGEN OF AMERICA, INC.
