Battery, assembly
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
- Refer to warnings and safety measures. Refer to WARNINGS AND SAFETY MEASURES FOR HANDLING LEAD -ACID BATTERIES
- Refer to battery handling instructions. Refer to BATTERY HANDLING INSTRUCTIONS
NOTE:

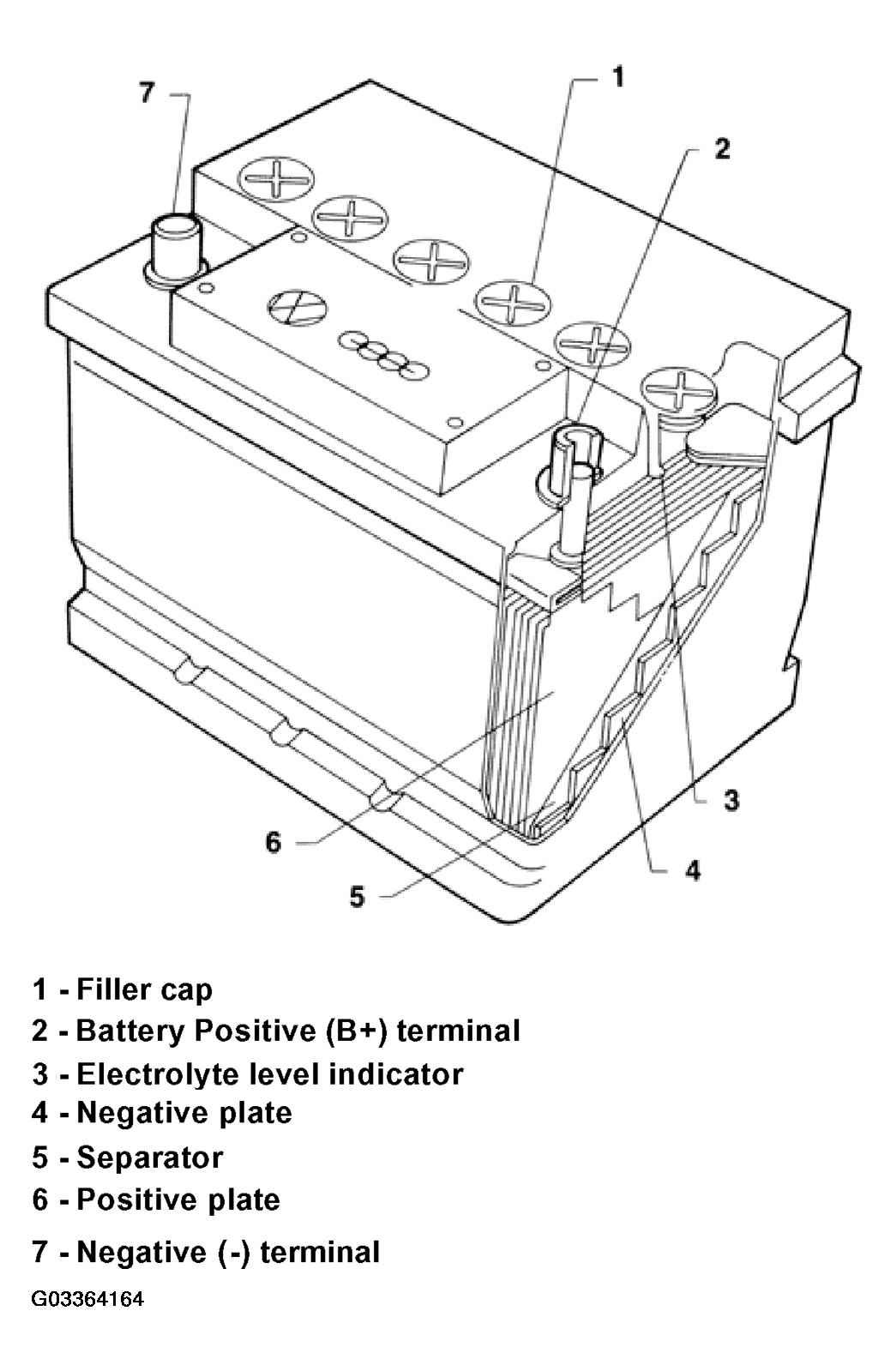

The following list refers to items in Fig 1.
- - Filler cap
- - Battery Positive (B+) terminal
- Larger diameter than negative (-) terminal
- Clean off any oxidation
- - Electrolyte level indicator
- Checking electrolyte level. Refer to ELECTROLYTE LEVEL, CHECKING
- - Negative plate
- Color: metallic gray
- - Separator
- Insulator
- - Positive plate
- Color: dark brown
- - Negative (-) terminal
- Smaller diameter than positive (B+) terminal
- Clean off any oxidation
