Battery handling instructions

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Before working on the electrical system:

Obtain radio anti -theft code.
Ignition OFF !
Disconnect battery Ground (GND) strap.

NOTE:

Battery terminal clamps must only be fitted by hand without force in order to prevent damage to the battery housing.
Battery terminals must no longer be greased.
Tightening torque for all battery terminal clamps: 5 N.m (44 in. lb).

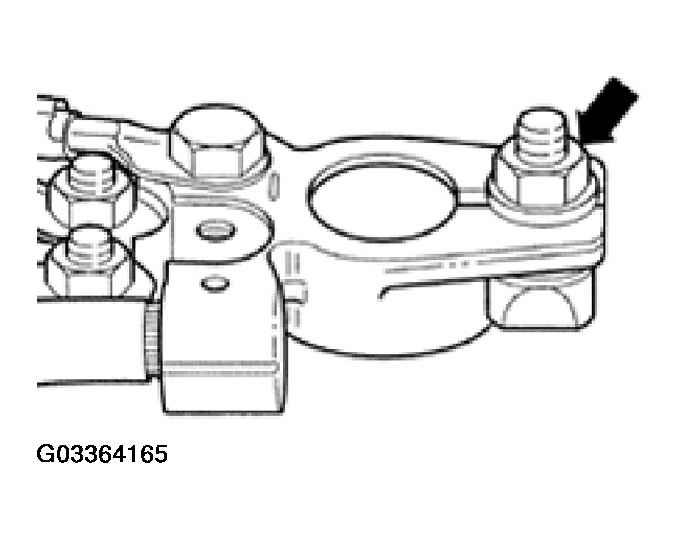

Fig 1: Identifying Battery Terminal Clamp

Courtesy of VOLKSWAGEN OF AMERICA, INC.

After reconnecting battery:

Activate vehicle equipment such as radio, clock and power windows as per Repair Manual and/or Owner's Manual.
On vehicles equipped with OBD II, activate readiness code
Refer to ON BOARD DIAGNOSTIC (OBD) in Engine Performance.
