A/C condenser, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Discharge A/C refrigerant system, refer to A/C refrigerant system, discharging .
Remove front bumper.
Remove bumper cross support.
Disconnect refrigerant lines from condenser -1-.

CAUTION: Immediately plug open connections on A/C components and lines to prevent contamination from dirt and moisture.

Remove screws -2- and remove condenser.
Remove clips -4- and remove grille -5-.

From M.Y. 1998

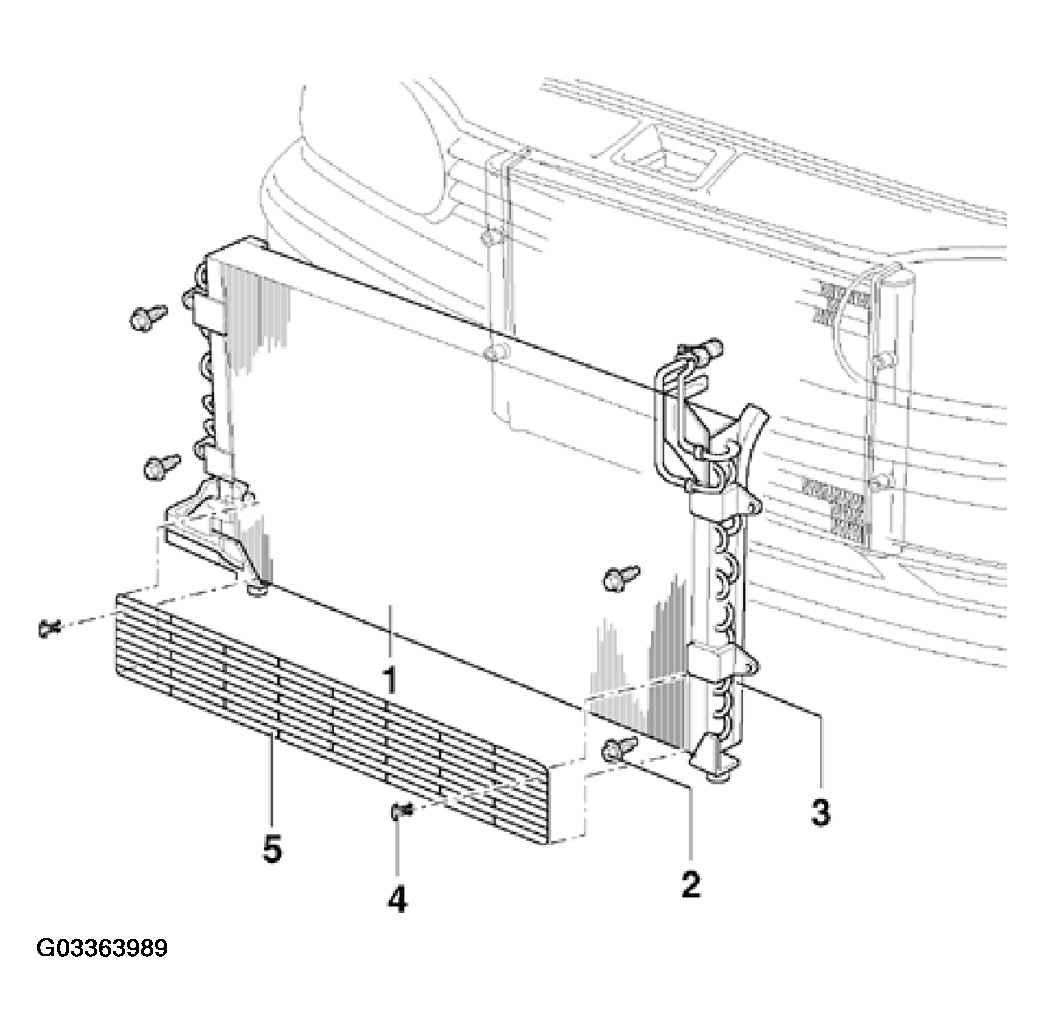

Fig 1: Identifying Components Of A/C Condenser
Courtesy of VOLKSWAGEN OF AMERICA, INC.
