A/C refrigerant system, discharging
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Always use an Underwriter's Laboratory (UL) approved refrigerant recovery/recycling/recharging unit such as Kent-Moore ACR4, or equivalent, whenever discharging an R-134a A/C system.
- Any person who services a motor vehicle air conditioner MUST, by law, be properly trained and certified and use approved refrigerant recycling equipment. Technicians must complete an EPA approved recycling course to be certified.
- State and local governments may have additional requirements regarding air conditioning servicing. Always comply with state and local laws.
- Always wear safety goggles when charging or discharging system.
CAUTION:
- Always use separate refrigerant recovery/recycling/recharging servicing equipment for R-12 and R-134a systems. DO NOT use one piece of equipment for both R-12 and R-134a systems. The residual traces of refrigerant inside the equipment will contaminate and damage the equipment. Servicing equipment includes recovery/recycling/recharging unit, charging station, vacuum pump, manifold gauges, etc.
- DO NOT use R-12 servicing equipment on R-134a systems or R-134a equipment on R-12 systems or damage to both the vehicle A/C system and servicing equipment may result. Use only equipment designed to meet Society of Automotive Engineers (SAE) standards.
- R-134a and R-12 systems use different size service fittings. NEVER use adaptors to convert an R-12 fitting to R-134a size or R-134a fitting to R-12 size.
NOTE:
Also refer to the safety measures starting on page, refer to A/C refrigerant system (R-134a), safety measures when discharging or charging A/C refrigerant system.
NOTE:
Make sure that initial set-up of the refrigerant recovery/recycling/recharging unit has been completed before discharging the A/C system.

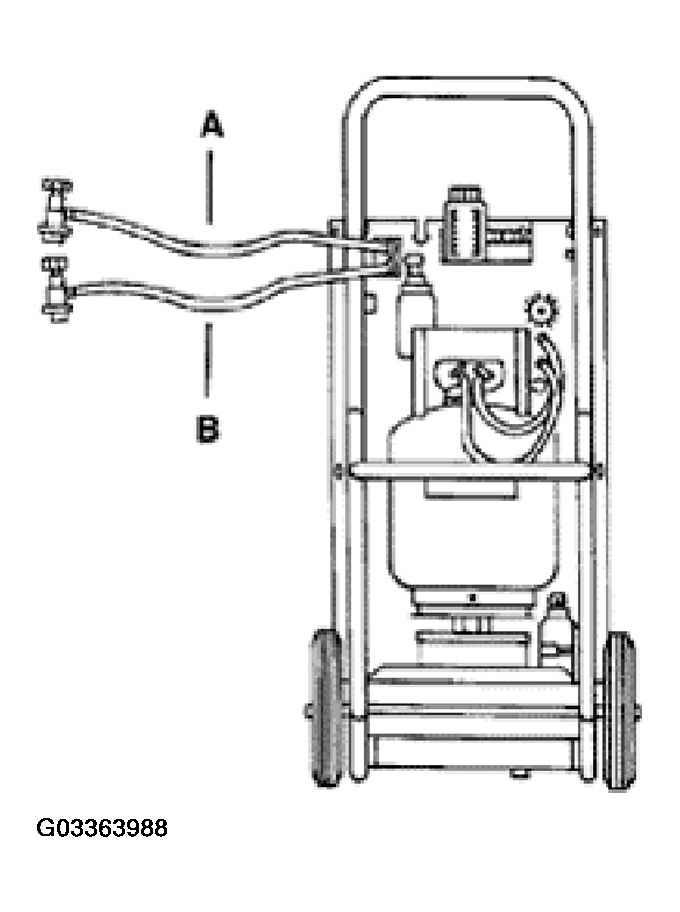

- Connect red high -pressure hose -A- of refrigerant recovery/recycling/recharging unit to high side fitting on vehicle and open coupler valve.
- Connect blue low -pressure hose -B- of refrigerant recovery/recycling/recharging unit to low side fitting on vehicle and open coupler valve.
CAUTION:
Always follow manufacturer's instructions when using a refrigerant recovery/recycling/recharging unit.
- Following refrigerant recovery/recycling/recharging unit manufacturer's instructions, discharge A/C system into refrigerant recovery/recycling/recharging unit.
- Disconnect power supply from A/C clutch to prevent accidental compressor operation with A/C system discharged.
