Evaporator housing, assembly
WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Part numbers are for reference only. Always check with your Parts Department for latest parts information.
To remove evaporator housing for disassembly:
- Discharge A/C refrigerant system, refer to A/C refrigerant system, discharging .
- Drain engine coolant.
- Remove instrument panel and support bracket.
- Remove heater box/evaporator housing.

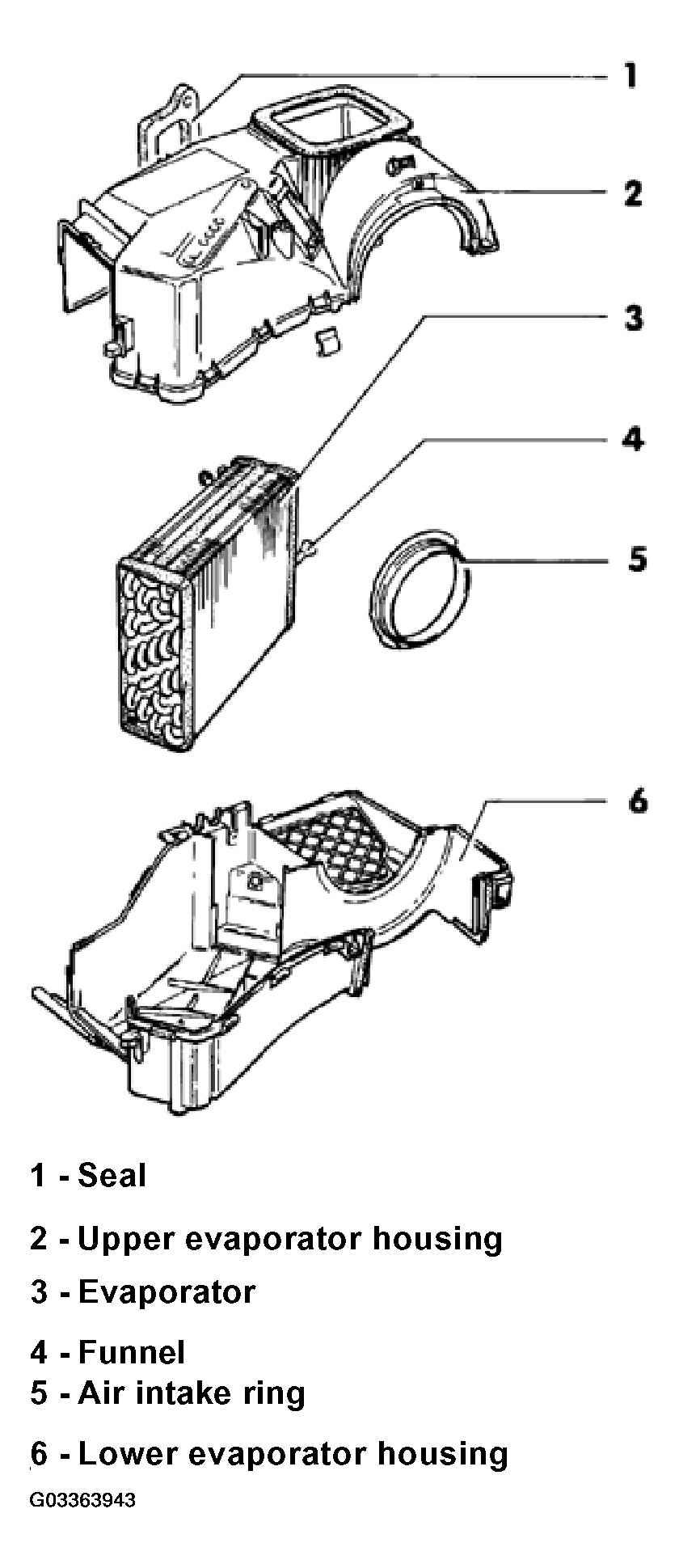

The following list pertains to Fig 1.
- Seal
- Upper evaporator housing
- Seal grooves and contact surfaces with silicone sealant, Part No. AKD 476 KD5 05, or equivalent
- Evaporator
- Funnel
- To guide sensor tube for A/C evaporator temperature switch -E33-
- Air intake ring
- Lower evaporator housing
- Seal grooves and contact surfaces with silicone, sealant Part No. AKD 476 KD5 05, or equivalent
