Adjusting temperature flap cable

WARNING: This page does not describe the selected car, but rather 27 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Jetta, and 1999 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Install A/C control head in instrument panel.
Adjust temperature control knob to full cold.
Connect temperature flap cable (blue sleeve) to temperature flap lever.
Push lever in direction of arrow to stop.
Hold lever in this position and install cable retaining clip.

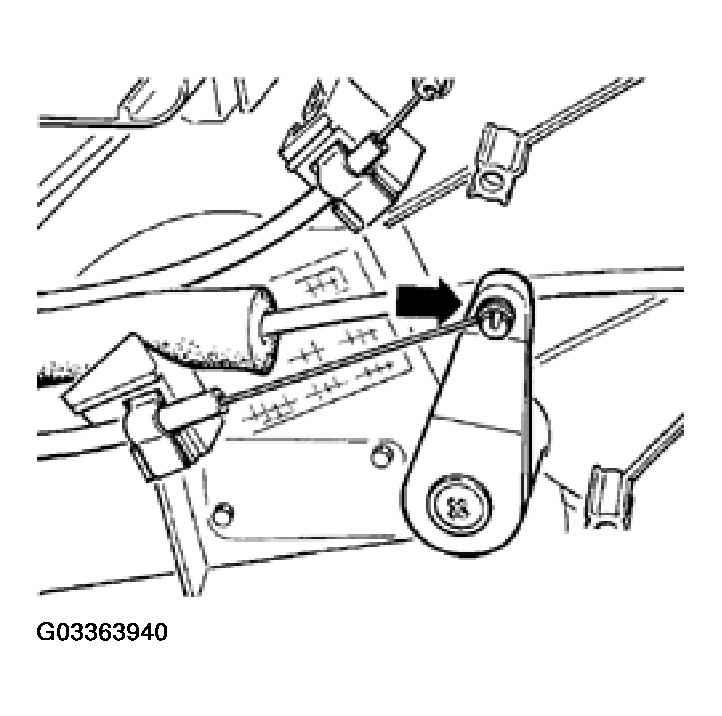

Fig 1: Adjusting Temperature Flap Cable

Courtesy of VOLKSWAGEN OF AMERICA, INC.
