Connecting VAS 5056 to passenger's airbag components
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
See Evaluation for display group No. 001
.
- Remove shelf on passenger's side: refer to REMOVING AND INSTALLING PASSENGER SIDE STORAGE SHELF .
- Disconnect wiring harness to airbag unit and connect yellow 2 -pin connector -2- from VAS 5056/1 to wiring harness. See Fig 1 .
NOTE:

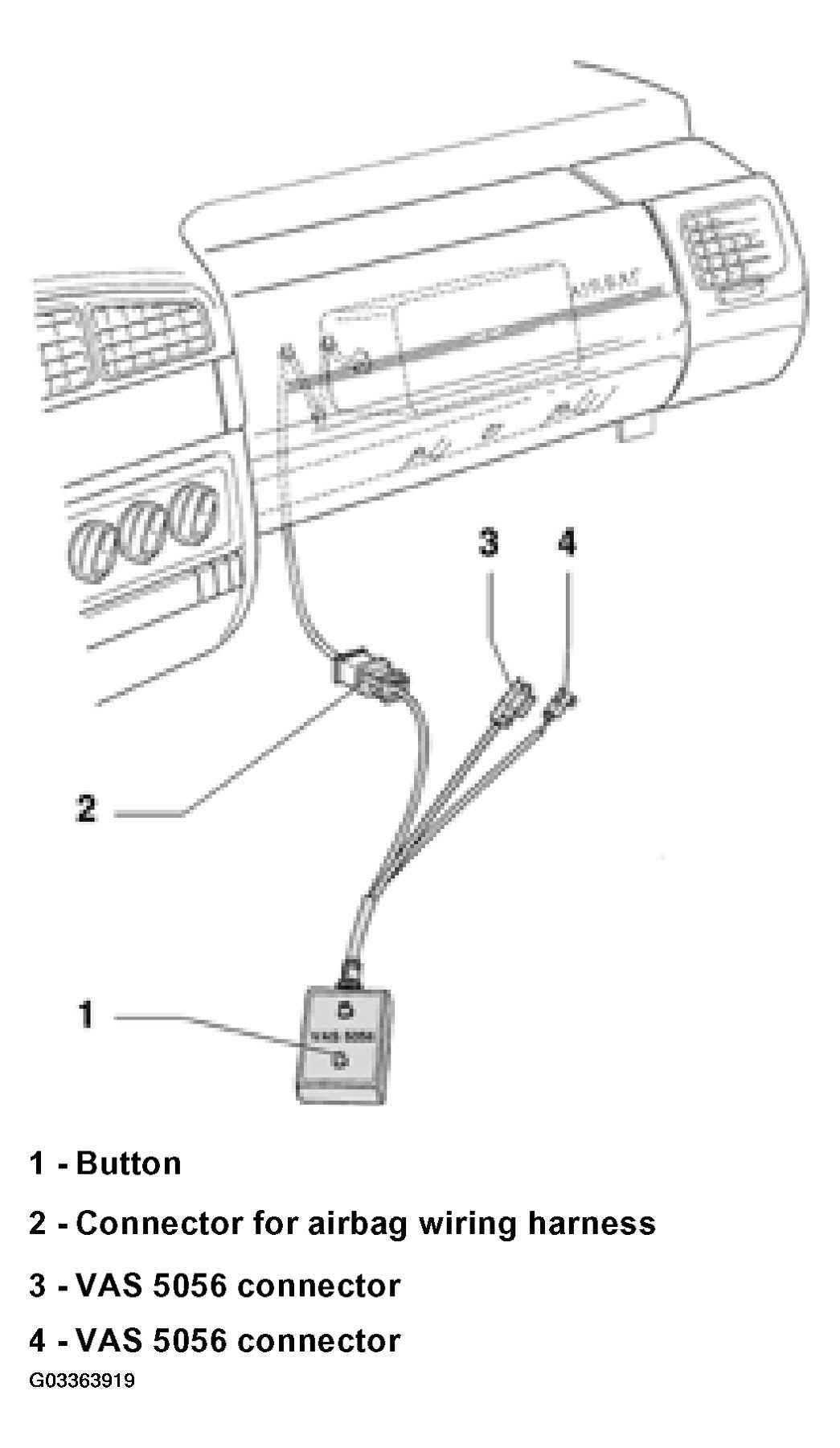

The following list refers to Fig 1
.
- - Button
- - Connector for airbag wiring harness
- - VAS 5056 connector
- not applicable
- - VAS 5056 connector
- not applicable
