Removing bumper up to 02.98
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

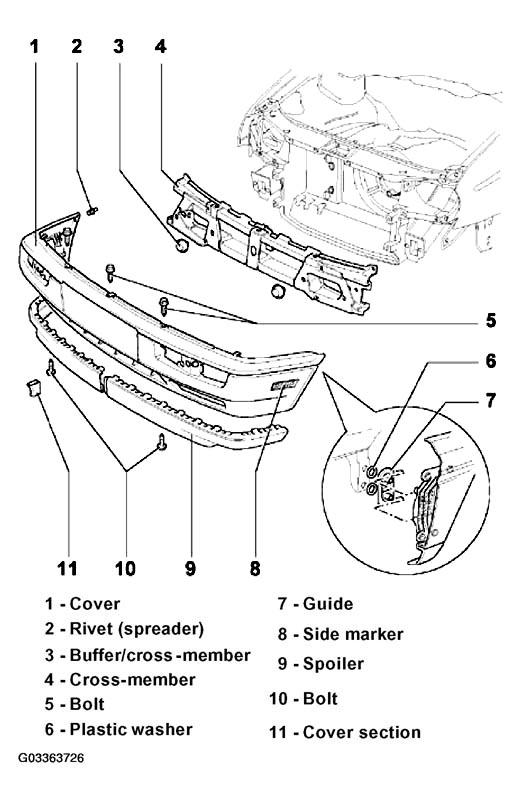

The following list refers to items in Fig 1
.
- - Cover
- Material: PP/EPDM
- Removing and installing cover. See Bumper cover, removing and installing up to 02.98 .
- - Rivet (spreader)
- Connects cover to wheel house liner
- - Buffer/cross-member
- - Cross-member
- - Bolt
- 4.5 N.m (40 in. lb) (Qty. 3)
- - Plastic washer
- - Guide
- Remove or install bumper by pulling out of guides (left and right) or pushing into guides parallel
- - Side marker
- USA only
- - Spoiler
- Clipped into cover
- Not necessary to remove when removing cover
- - Bolt
- 4.5 N.m (40 in. lb) (Qty. 5)
- - Cover section
- Only required for painted covers
