Bumper cover, removing and installing up to 02.98
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.
- Remove radiator grille and spreader clips (connecting piece between bumper cover and wheel house liner).
- Remove headlight washer system jets (optional equipment)
See WINDSHIELD WIPER AND WASHER SYSTEM, SERVICING .
- Remove hex bolts (Qty. 8).
- Disconnect air duct from bumper cover.
- Disconnect connectors.

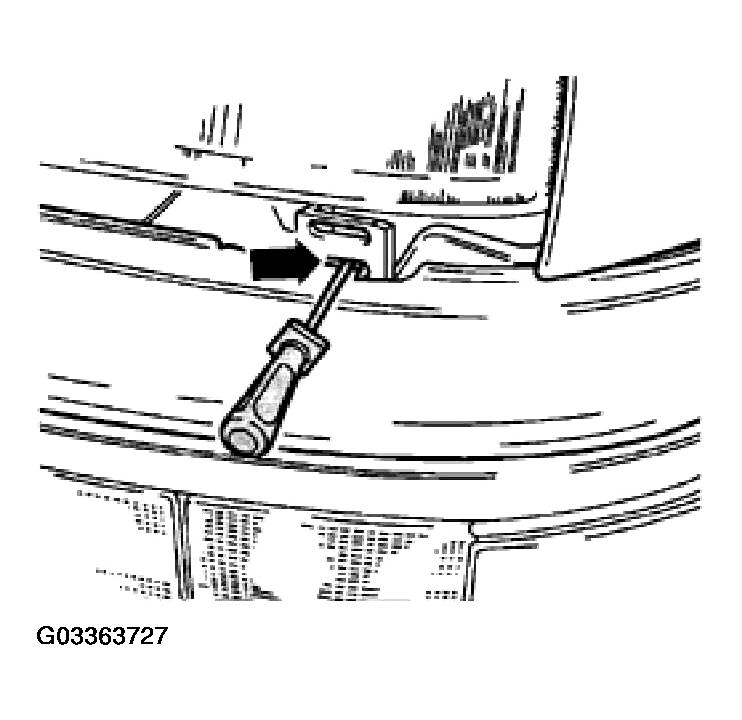

- Push down left/right retaining tabs -arrow- with screwdriver and pull bumper cover parallel out of side guides.
