Bumper impact beam 03.98 and up, assembly overview

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to items in Fig 1 .

- Cover
- Removing and installing cover. See Bumper cover 03.98 and up, removing and installing
- Bolt
- Qty. 6
- 20 N.m (15 ft lb)
- Bumper impact beam
- Removing:
  - Radiator grille, headlight and cover - 1 - removed.
  - Unclip headlight washer hose from bumper impact beam.
  - Remove bolts - 2 -, then remove bumper impact beam.

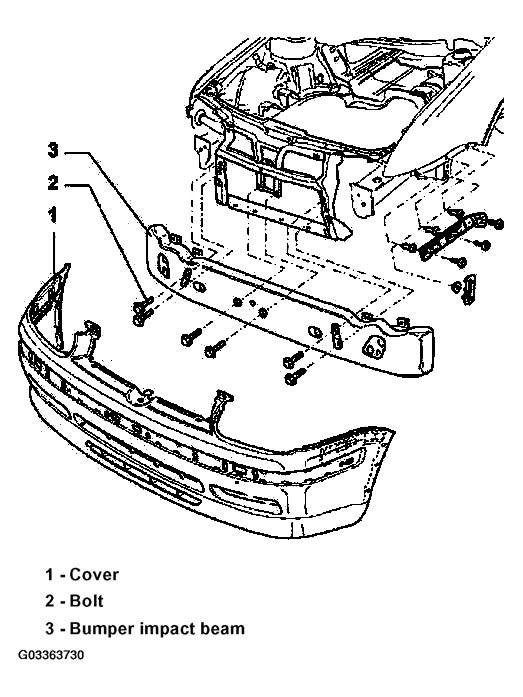

Fig 1: Identifying Bumper Impact Beam Assembly Components (03.98 And Up)

Courtesy of VOLKSWAGEN OF AMERICA, INC.
