Bumper cover 03.98 and up, removing and installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

Remove radiator grille. See BUMPER COVER 03.98, ASSEMBLY OVERVIEW .
Remove (unclip) outer air guide grilles - 14 -. See Fig 1 .
Pull out clips - 2 - and - 15 -.
Remove corner part - 10 -.
Remove grille from cover - 1 -.
Remove bolts - 13 -. Pull cover - 1 - off guides - 5 - and brackets - 4 - (left and right side).

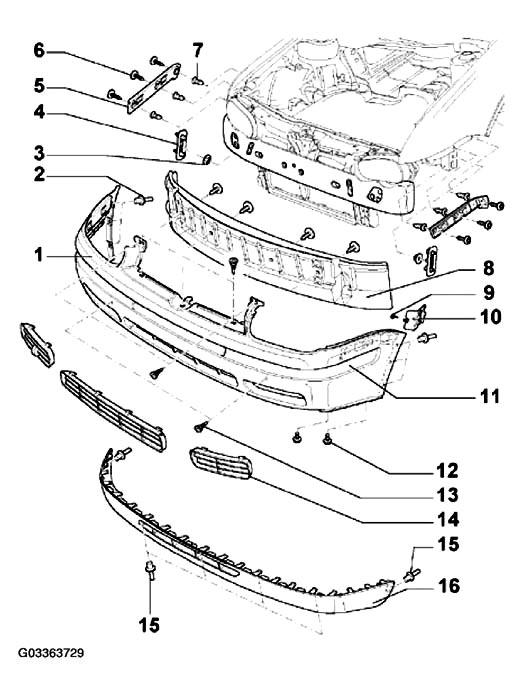

Fig 1: Identifying Bumper Cover Components (03.98 And Up)
Courtesy of VOLKSWAGEN OF AMERICA, INC.
