Push button, removing and installing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: The following list refers to Fig 1 .

- Circlip
- Relay lever
- Rod clip
- Guide piece
- Seal
- Connector sleeve
- Push button housing
- Removing. See PUSH BUTTON, REMOVING .
- Spring
- Guide cylinder
- Push button
- Seal
- Lock cylinder
- Removing
  - Remove circlip. Refer to PUSH BUTTON, REMOVING AND INSTALLING . Remove relay lever and pull out lock cylinder (key must be inserted in lock cylinder).
- Maintaining common key locking, refer to MAINTAINING COMMON KEY LOCKING .
- Common key locking can be maintained by repositioning locking plates
- Seal
- Contact switch
- Clip

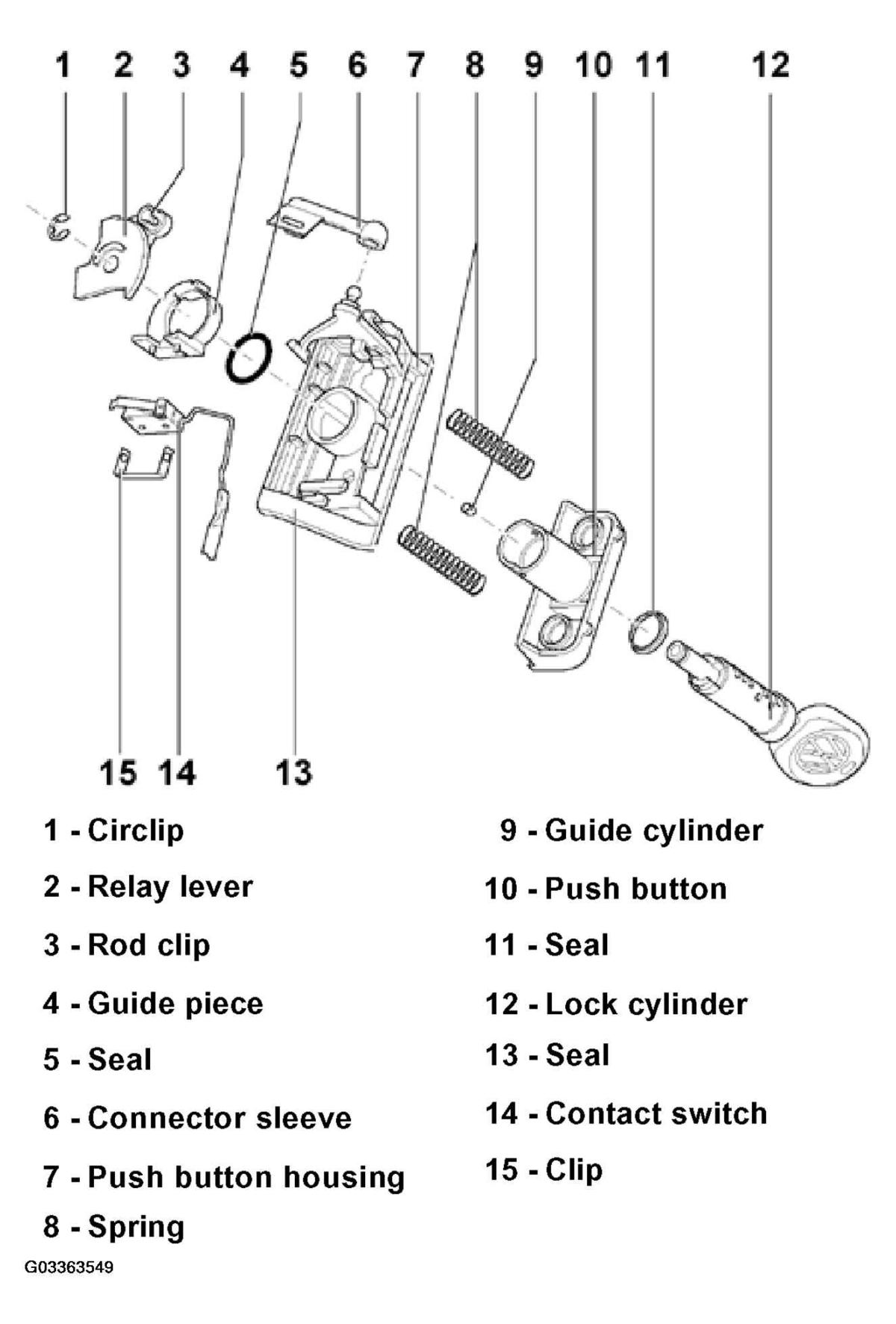

Fig 1: Identifying Push Button Components

Courtesy of VOLKSWAGEN OF AMERICA, INC.
