Maintaining common key locking

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2002 Volkswagen Cabrio, 2001 Volkswagen Cabrio, 2000 Volkswagen Cabrio, 1999 Volkswagen Cabrio, and 1998 Volkswagen Cabrio. However, it is still accessible from the selected car via links, so may be relevant.

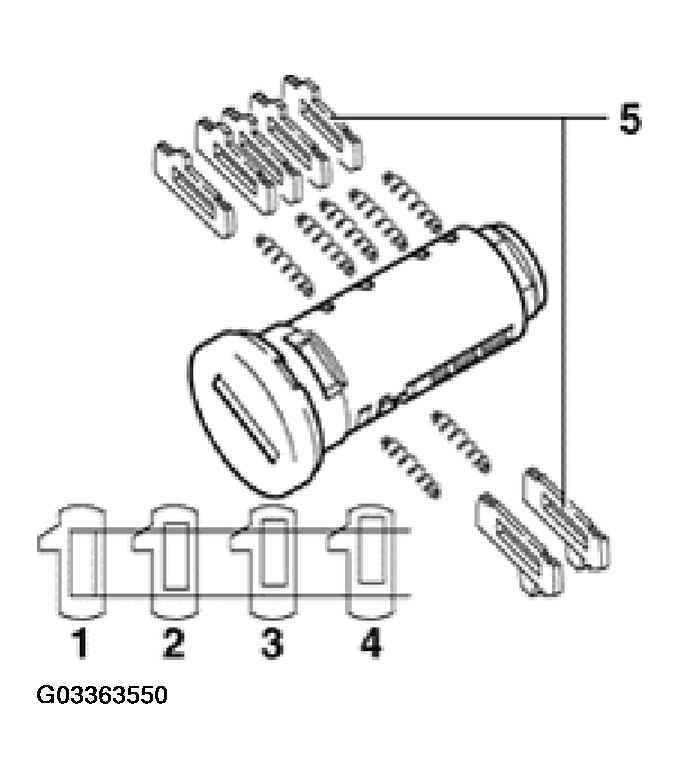

Common key locking can be maintained as it is in the vehicle by repositioning or attaching locking plates -5-.

1, 2, 3 and 4 - possible lock plate sizes.

Fig 1: Identifying Possible Lock Plate Sizes

Courtesy of VOLKSWAGEN OF AMERICA, INC.
