Output shaft, adjusting: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
(Determining thickness of output shaft shim)
It is necessary to re -adjust the input shaft when any of the following is replaced:
- Final drive
- Clutch housing
- Tapered roller bearing
Adjustment overview, see Adjustment overview .
- Press outer race for small tapered roller bearing along with 0.65 mm adjustment shim fully into clutch housing, see OUTPUT SHAFT, ADJUSTING .
- Install output shaft and tighten bearing support.
- Tighten bearing mount nuts.
- Tightening torque: 25 N.m (18 ft lb) plus additional 90° (1/4 -turn)

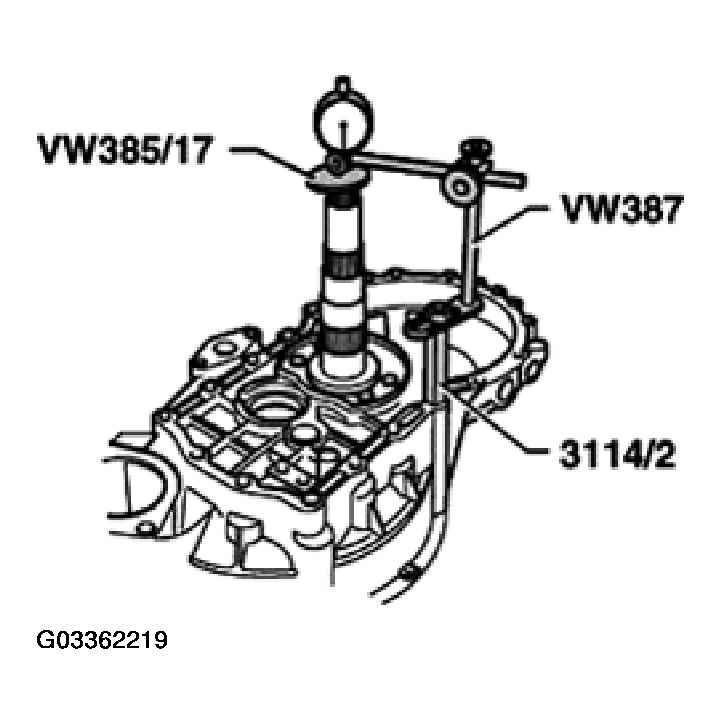

- Install dial indicator (3 mm measuring range).
- Adjust dial indicator to zero with 1 mm preload.
- Move output shaft up and down.
- Read and record play measured by dial indicator.
- Example: 0.30 mm
CAUTION: Do not rotate the output shaft while measuring play as this will cause the bearings to settle, resulting in an inaccurate measurement.
