5th gear synchro -ring, installation position
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

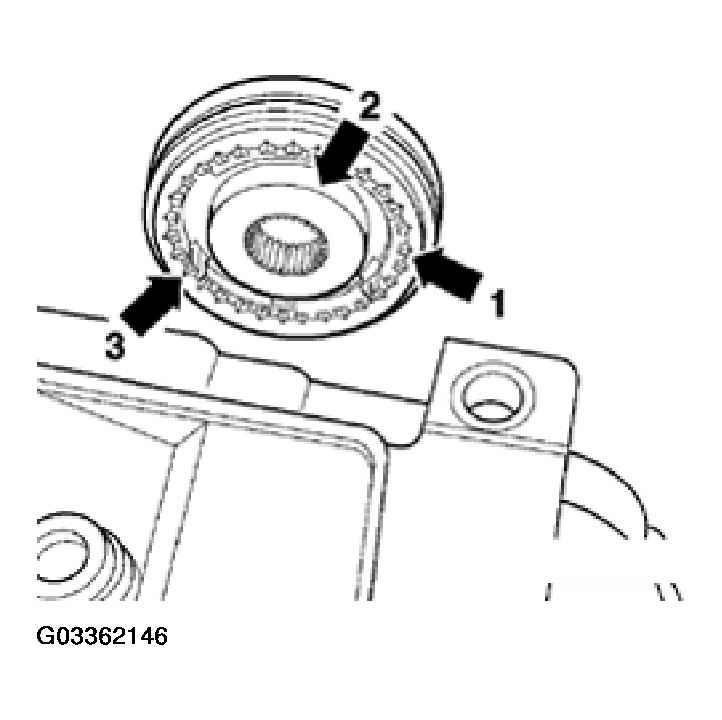

- Pointed teeth of operating sleeve -arrow 1- and high shoulder of synchro-hub -arrow 2- face transmission housing
- Synchro-hub mountings -arrow 3 - align with cast synchro-ring locking lugs (see 5th gear synchro with cast locking lugs , Figure , arrows)
