5th gear synchro -with cast locking lugs

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

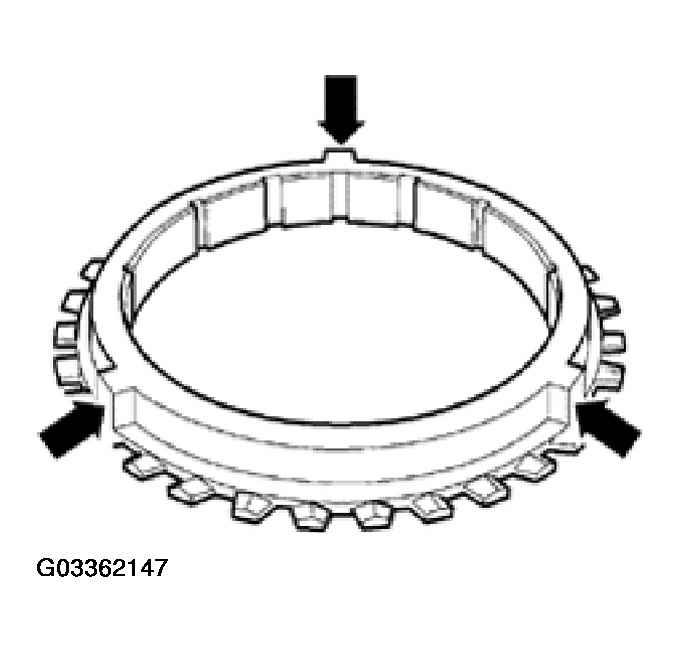

Fig 1: Identifying 5Th Gear Synchro -With Cast Locking Lugs

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Drive on 5th gear synchro-hub.
NOTE: Make sure that the synchro-ring is free to move while driving on the hub.

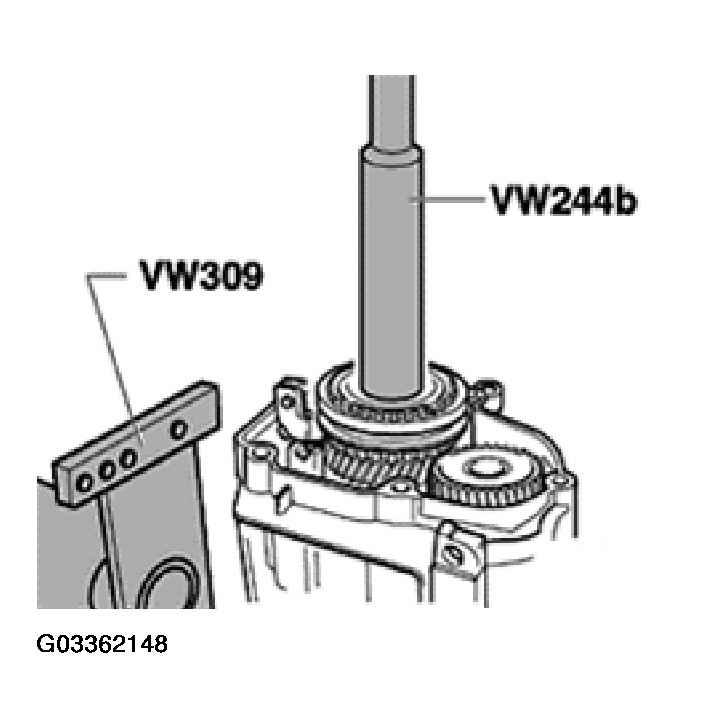

Fig 2: Driving On 5th Gear Synchro-Hub

Courtesy of VOLKSWAGEN OF AMERICA, INC.

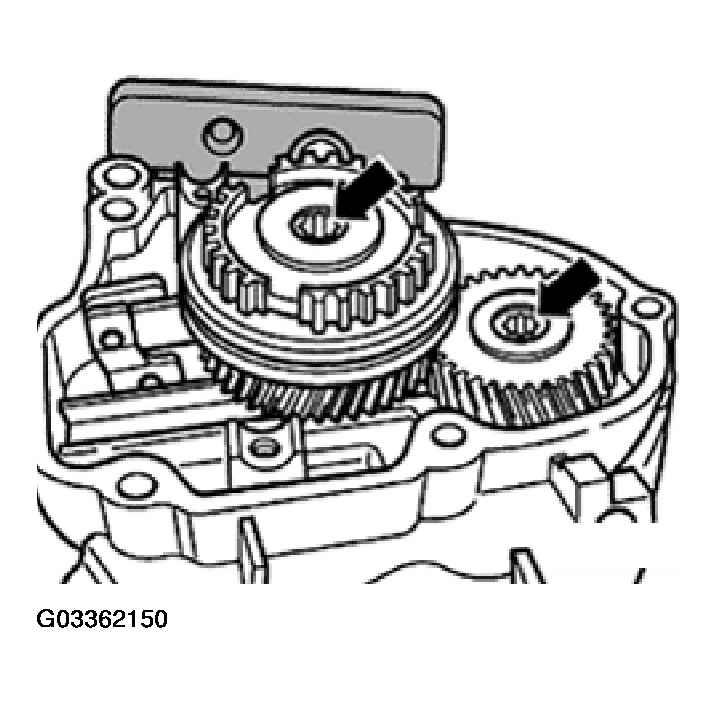

Install securing bolts for synchro-hub and 5th gear; hand -tighten only.
Belleville spring/attachment bolts for 5th gear synchro-hub and 5th gear, installation position
- Outer diameter/concave side (-arrows-) faces 5th gear

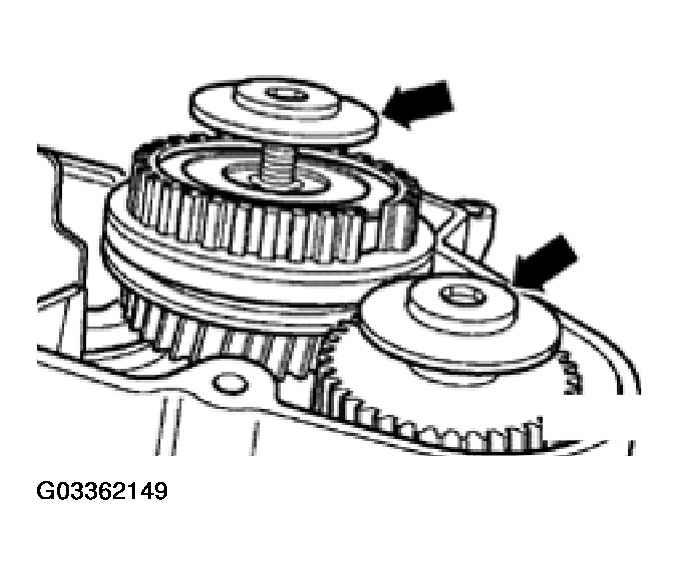

Fig 3: Identifying Outer Diameter/Concave Side Faces 5th Gear

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Engage two gears to lock transmission before tightening synchro-hub and 5th gear securing bolts (-arrows-), see ASSEMBLING , Figure
Install 5th gear shift fork.

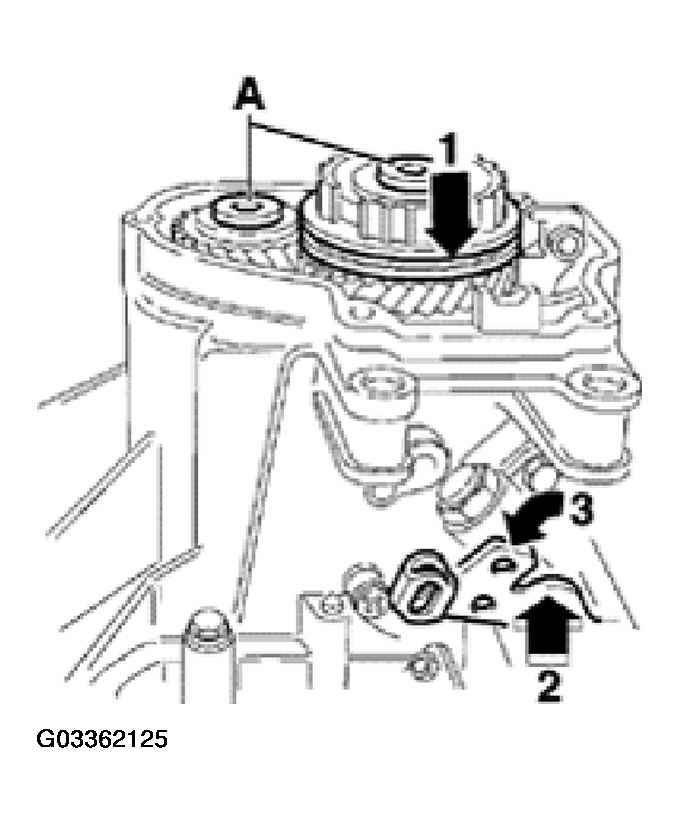

Fig 4: Tightening Synchro-Hub And 5th Gear Securing Bolts

Courtesy of VOLKSWAGEN OF AMERICA, INC.
