Shift lever, removing and installing: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Lubricate all mountings and contact surfaces with MoS2 grease.

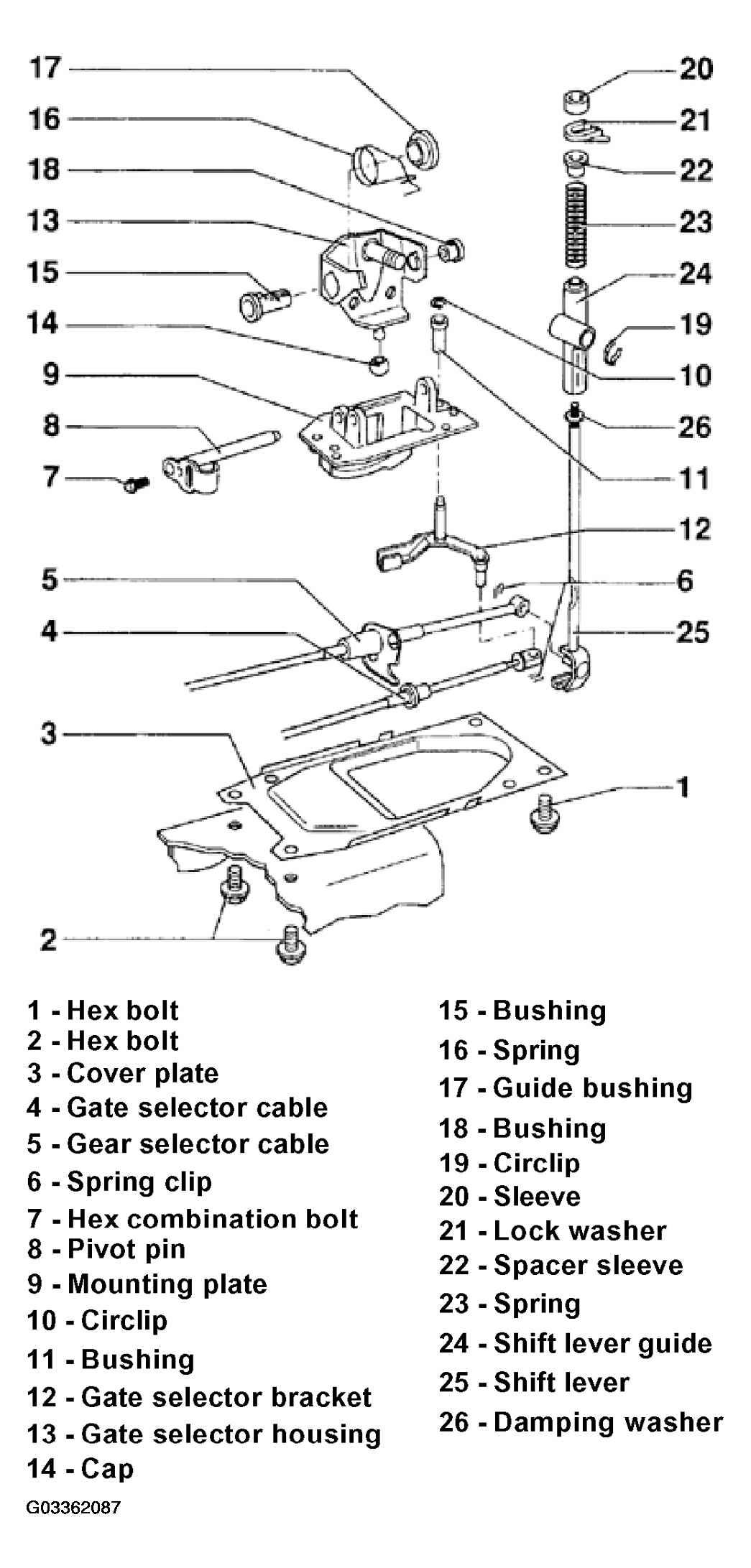

The following list pertains to Fig 1 .
- Hex bolt
- Tightening torque: 25 N.m (18 ft lb)
- Hex bolt
- Tightening torque: 25 N.m (18 ft lb)
- Cover plate
- Gate selector cable
- On gate selector bracket
- Gear selector cable
- On shift lever
- Spring clip
- Hex combination bolt
- Pivot pin -8- to mounting plate
- Tightening torque: 15 N.m (11 ft lb)
- Pivot pin
- Mounting plate
- Circlip
- Removing and installing, see Removing circlip for selector bracket and shift lever guide/selector housing
- Bushing
- Fits in one position only
- Gate selector bracket
- Gate selector housing
- Fit into mounting plate after installing complete shift lever
- Cap
- Assembling, see Installing gate selector housing cap
- Bushing
- Fits in one position only
- Spring
- Guide bushing
- Assemble with bushing -15-
- Bushing
- Circlip
- Sleeve
- Where applicable
- Lock washer
- Removing and installing, see Removing and installing circlip
- Spacer sleeve
- Spring
- Shift lever guide
- Shift lever
- Damping washer
