Removing and installing circlip
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

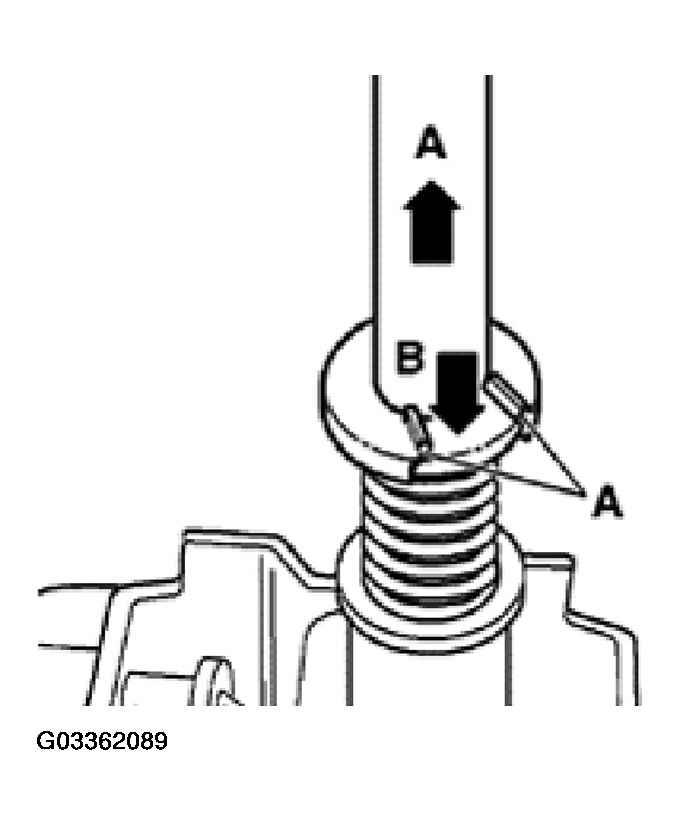

- Pull shift lever in direction of arrow -A- and simultaneously use screwdriver to push spacer bushing in direction of arrow -B- to stop.NOTE: Do not tilt the spacer bushing when pushing down. The holding slot in the shift lever for the lock washer must remain accessible.
