Shift forks, disassembling and assembling: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

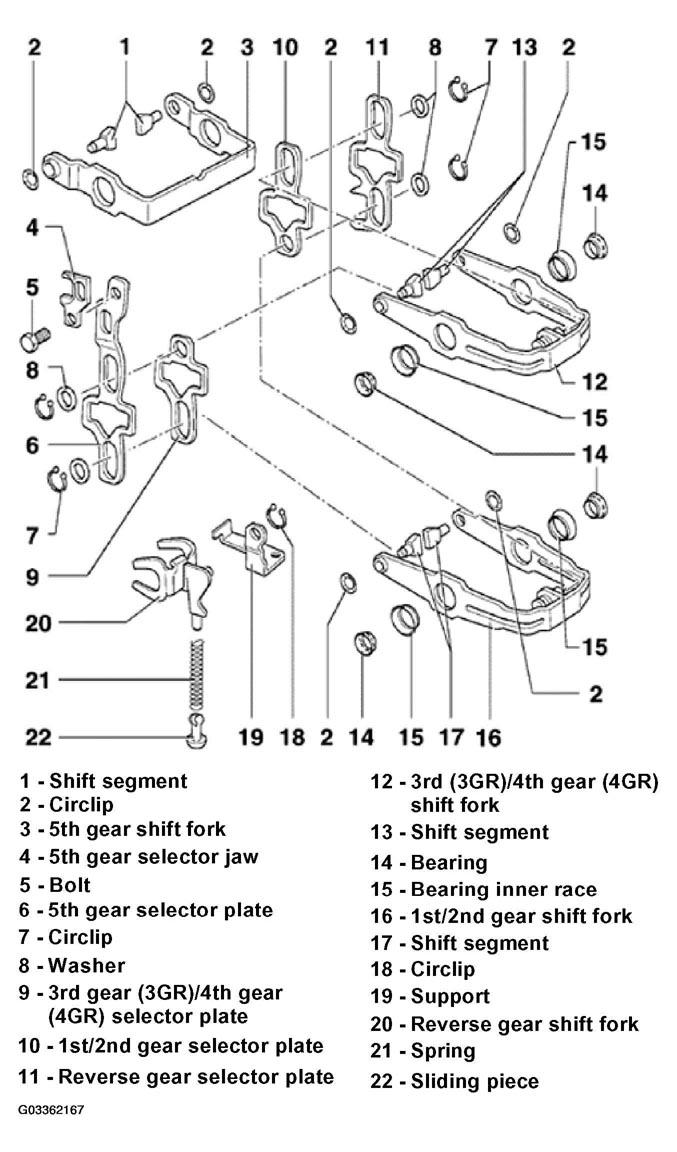

The following list pertains to Fig 1 .
- Shift segment
- Identifying, see Identifying shift segments
- Must still rotate freely after installing circlip
- Circlip
- Always replace
- Pry off with screwdriver
- Installing, see Installing circlip
- 5th gear shift fork
- Adjusting, see ADJUSTING 5TH GEAR
- 5th gear selector jaw
- Bolt
- Tightening torque: 25 N.m (18 ft lb)
- 5th gear selector plate
- Circlip
- Washer
- 3rd gear (3GR)/4th gear (4GR) selector plate
- 1st/2nd gear selector plate
- Reverse gear selector plate
- 3rd (3GR)/4th gear (4GR) shift fork
- With shift segments, see Shift fork with installed shift segments
- Shift segment
- Identifying, see Identifying shift segments
- Must still rotate freely after installing circlip
- Bearing
- Bearing inner race
- Removing, see Removing bearing inner race
- Installing, see Installing bearing inner race
- 1st/2nd gear shift fork
- With shift segments, see Shift fork with installed shift segments
- Shift segment
- Identifying, see Identifying shift segments
- Must still rotate freely after installing circlip
- Circlip
- Support
- For reverse gear shift fork
- Reverse gear shift fork
- Spring
- Sliding piece
- Domed-type
