Shift lever boot, installing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Turn boot inside out.
Insert shift knob in boot (-arrow-).

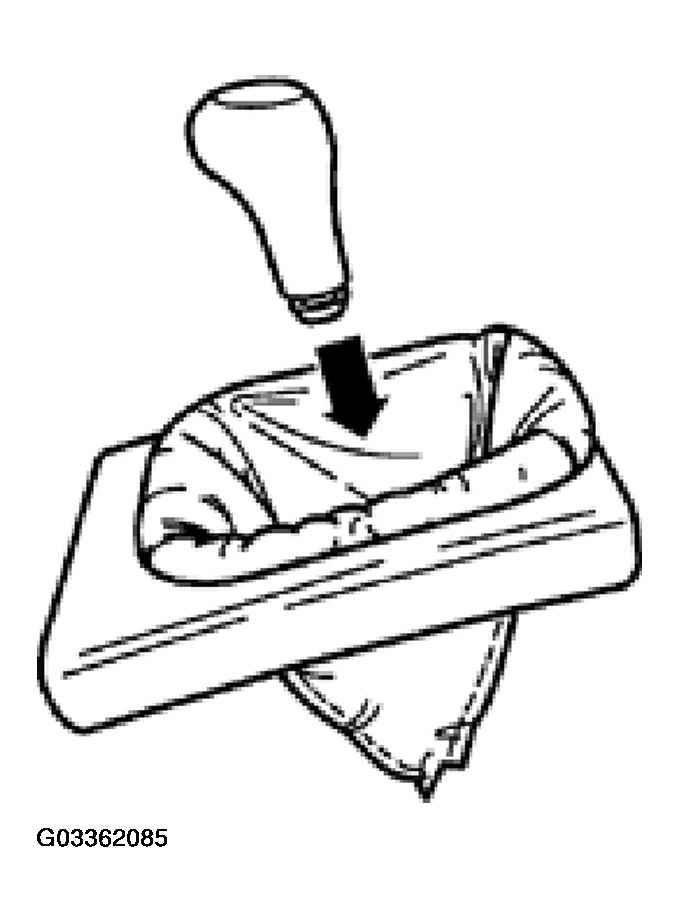

Fig 1: Inserting Shift Knob In Boot

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Secure boot to shift knob with sleeve (-arrow-).
Install shift knob and boot together.

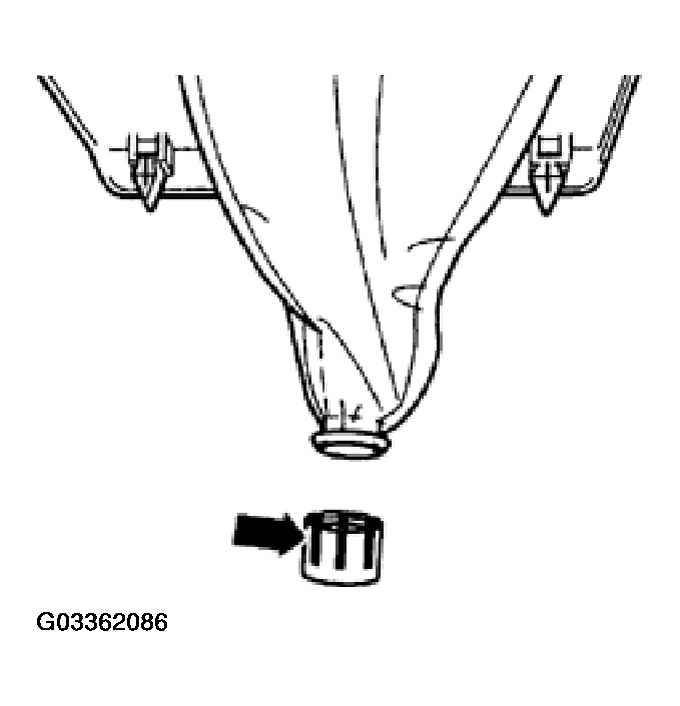

Fig 2: Securing Boot To Shift Knob With Sleeve

Courtesy of VOLKSWAGEN OF AMERICA, INC.
