Clutch, servicing: Notes
WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.
(Transmission removed)
CAUTION:
Always replace a clutch disc or pressure plate that has loose or damaged rivets.
NOTE:
Make sure that the correct replacement clutch disc and pressure plate are selected according to the engine code.

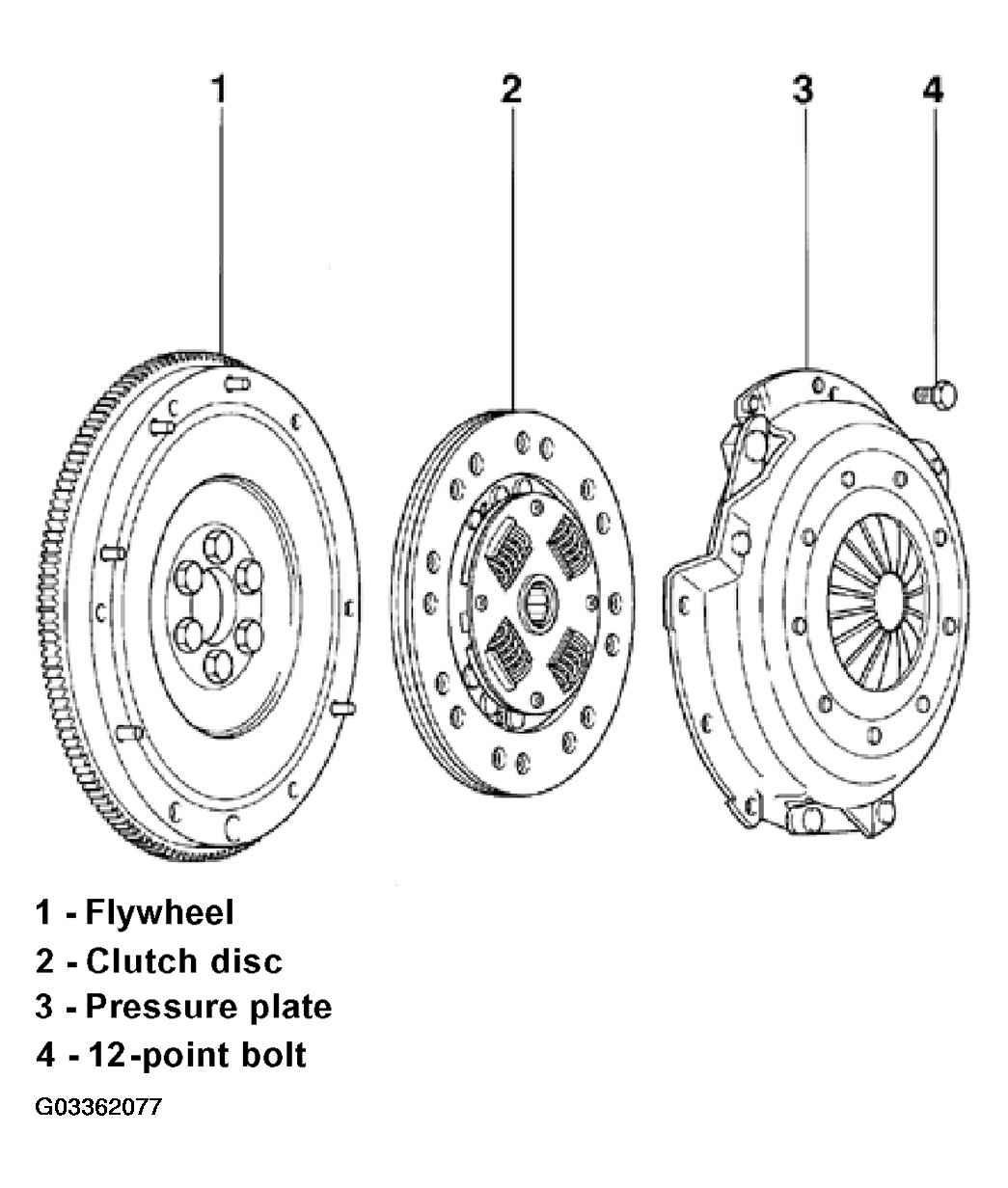

The following list pertains to Fig 1 .
- Flywheel
- Make sure centering dowel pins fit tightly
- Contact surface for clutch disc must be free of grooves, oil and grease
- Removing/installing, see appropriate Engine Mechanical article
- Clutch disc
- Diameter, see CODE LETTERS, ENGINE/TRANSMISSION APPLICATIONS, RATIOS, CAPACITIES (2 Of 2)
- Note installation position: spring cage faces toward pressure plate
- Centering, see Centering clutch disc and removing and installing pressure plate
NOTE:- Before installing clutch disc remove corrosion from input shaft splines and clutch disc hub splines, clean and apply only a very thin coating of grease, Part No. G 000 100, to the splines of the input shaft only.
- Place the clutch disc on the input shaft and make sure it moves back and forth freely.
- Remove excess grease.
- Pressure plate
- Removing and installing, see Centering clutch disc and removing and installing pressure plate
- Check ends of diaphragm spring, see Checking diaphragm spring
CAUTION: Pressure plates are protected against corrosion. Only the clutch disc contact surface may be cleaned. - 12-point bolt
- Tightening torque: 20 N.m (15 ft lb)
- Loosen and tighten evenly in stages, alternating in a diagonal pattern
