Centering clutch disc and removing and installing pressure plate

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Loosen and tighten evenly in stages, alternating in a diagonal pattern.
When removing, reverse position of flywheel retainer 3067.

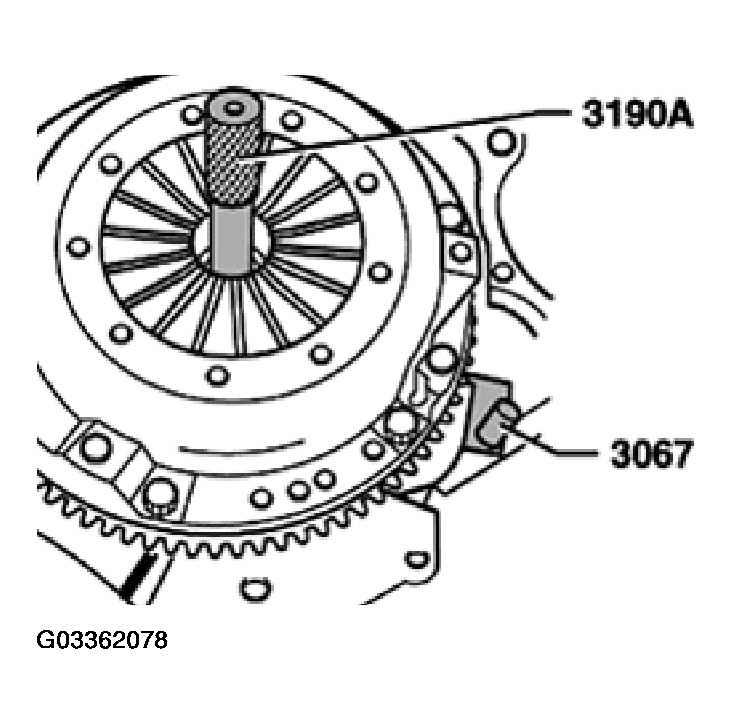

Fig 1: Centering Clutch Disc And Removing And Installing Pressure Plate
Courtesy of VOLKSWAGEN OF AMERICA, INC.
CAUTION:
- Pressure plate contact surface and clutch disc must make full contact with flywheel.
- Tighten mounting bolts evenly in a diagonal pattern to prevent damage to the centering holes in the pressure plate housing and the centering pins in the flywheel.
