Clutch pedal, removing and installing: Removing

WARNING: This page is about a different car, the 1999 Volkswagen GTI, 1998 Volkswagen GTI, 1997 Volkswagen GTI, 1996 Volkswagen GTI, and 1995 Volkswagen GTI. However, it is still accessible from the selected car via links, so may be relevant.

Open clutch slave cylinder bleeder valve and connect VAG 1238B brake filling and bleeding unit, see INSTALLING .
Remove over-center spring, see OVER-CENTER SPRING, REMOVING AND INSTALLING .
Disconnect clutch pedal from master cylinder, see MASTER CYLINDER, REMOVING AND INSTALLING .
Press operating rod toward engine compartment until reaching stop.
Remove clutch pedal securing clip from pivot pin by prying tab in direction of arrow -1- with screwdriver, then pushing clip off in direction indicated by arrow -2-.

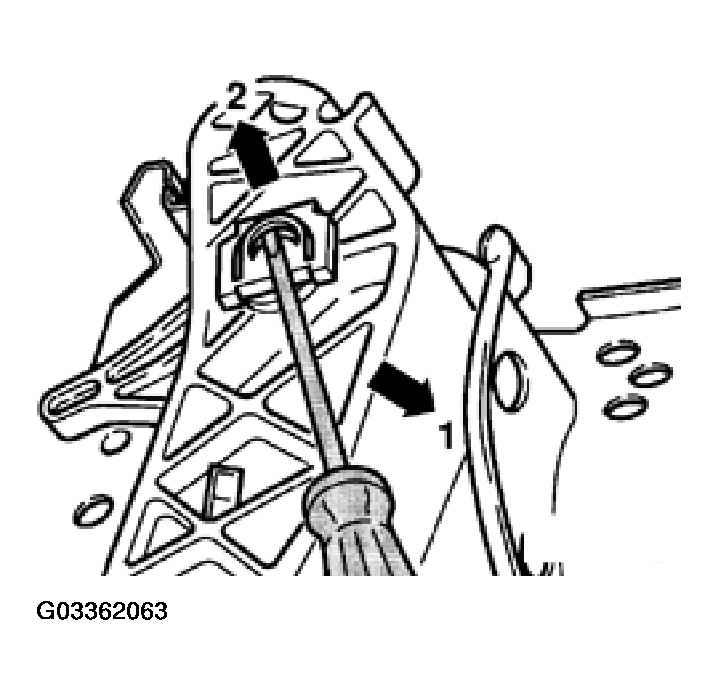

Fig 1: Removing Clutch Pedal Securing Clip From Pivot Pin By Prying Tab With Screwdriver

Courtesy of VOLKSWAGEN OF AMERICA, INC.

Remove securing clip -A- for pivot pin (brake pedal side) by inserting screwdriver below tab and pressing in direction of instrument panel -arrow-.
Pull pivot pin out toward right side until clutch pedal can be removed.

Fig 2: Removing Securing Clip -A- For Pivot Pin (Brake Pedal Side) By Inserting Screwdriver

Courtesy of VOLKSWAGEN OF AMERICA, INC.
