Center arm rest, removing and installing (Jetta)
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The center arm rest can only be folded down with the seat back in the upright position (installed position).
NOTE:

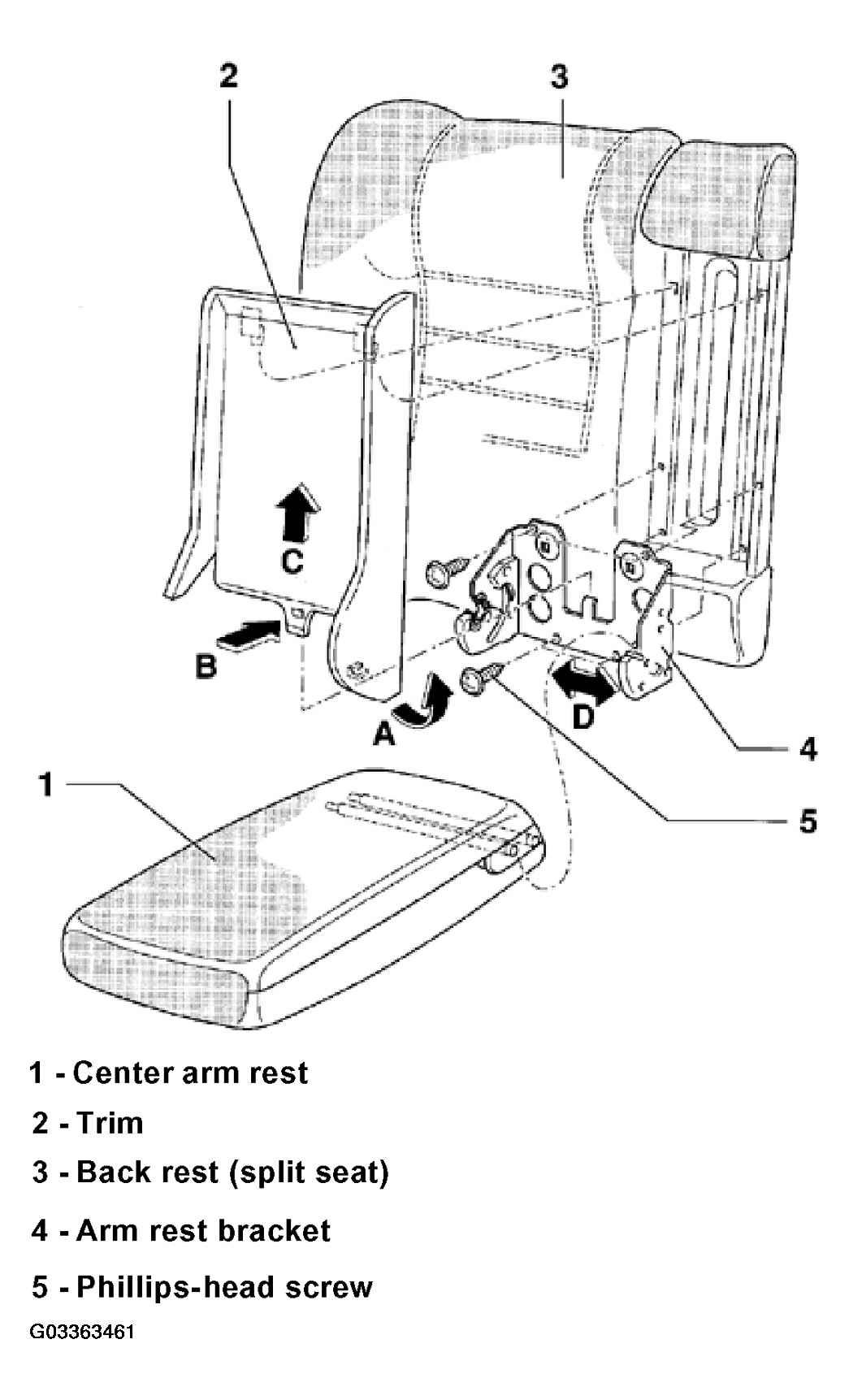

The following list refers to Fig 1
.
- - Center arm rest
Removing:
- Remove back rest (split seat). See Seat bench and back rest (split seat), removing .
- Fold down center arm rest.
- Remove trim -2-.
- Remove Phillips-head screws -5-.
- Press bearing on bracket -4- apart (arrow -D-) and disconnect bearing rod for center arm rest. (Bearing rod cannot be removed through opening on bearing).
- - Trim
Removing:
- Remove back rest (split seat). See Seat bench and back rest (split seat), removing .
- Fold down center arm rest.
- Disconnect side tab (arrow -A-) and center tab (arrow -B-) and push trim upward (arrow -C-).
- - Back rest (split seat)
- - Arm rest bracket
- - Phillips-head screw
