Seat bench and back rest (split seat), removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Lift seat bench using pull loop.

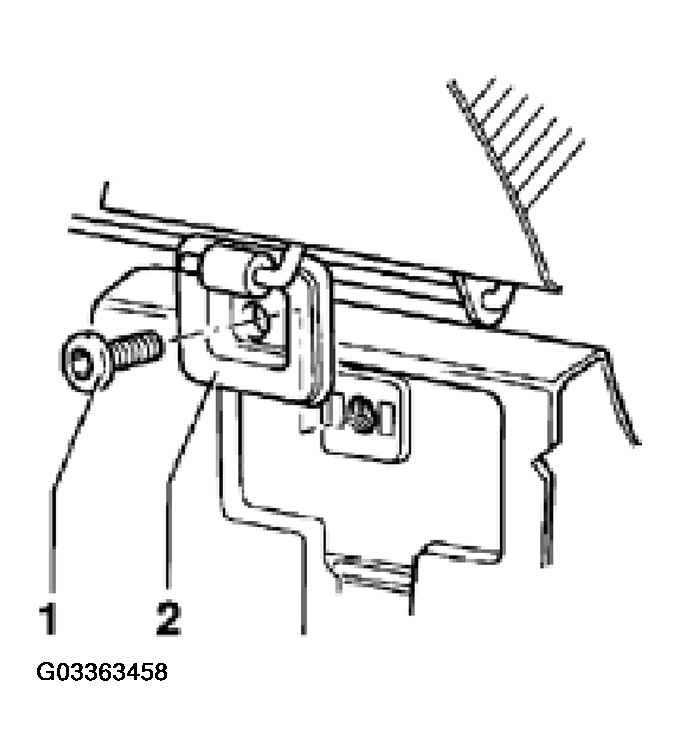

- Remove socket-head bolts -1- and take out seat bench along with hinges -2-.
- Fold down both seat backs.

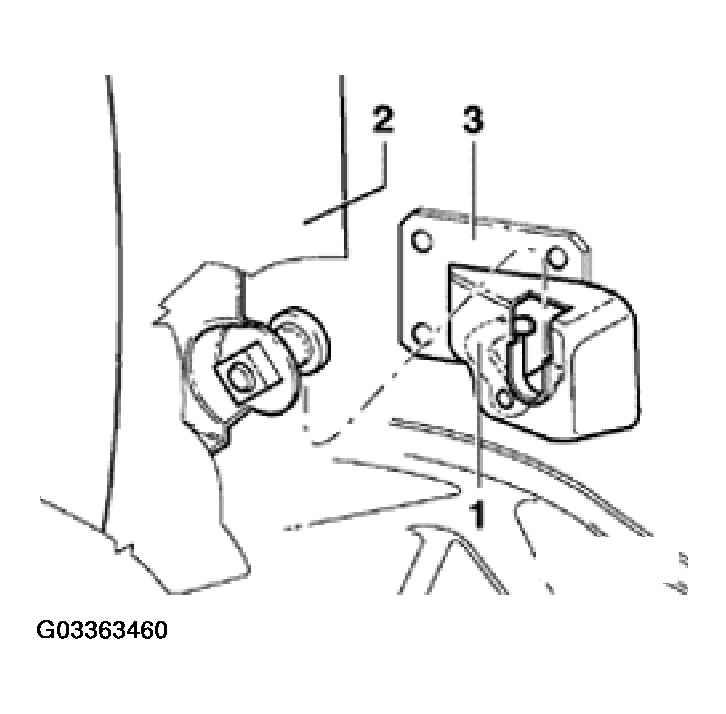

- Remove locks -1- from adapters -3- on seat back center bracket -2-.

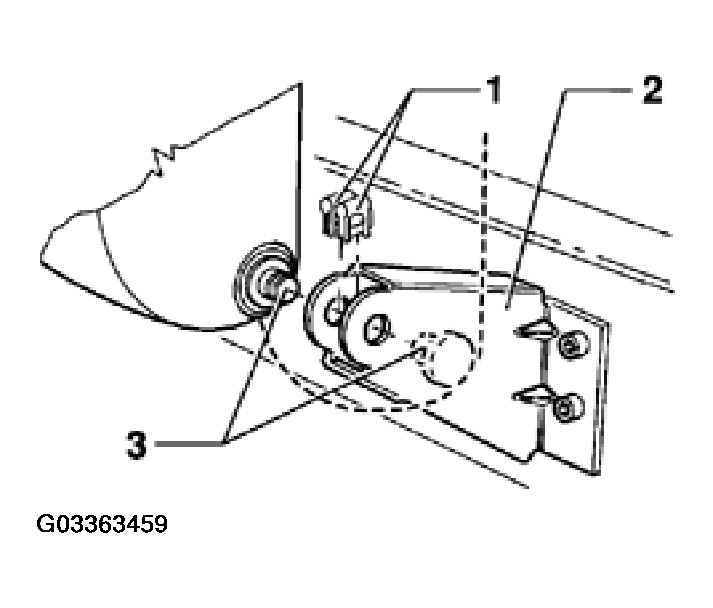

- Press back latching hook -1- on left and/or right using screwdriver.
- Pull seat back -2- upward out of seat back bracket -3-.
- Pull seat back out of center bracket and remove from vehicle.
