Golf 2-door, GTI
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

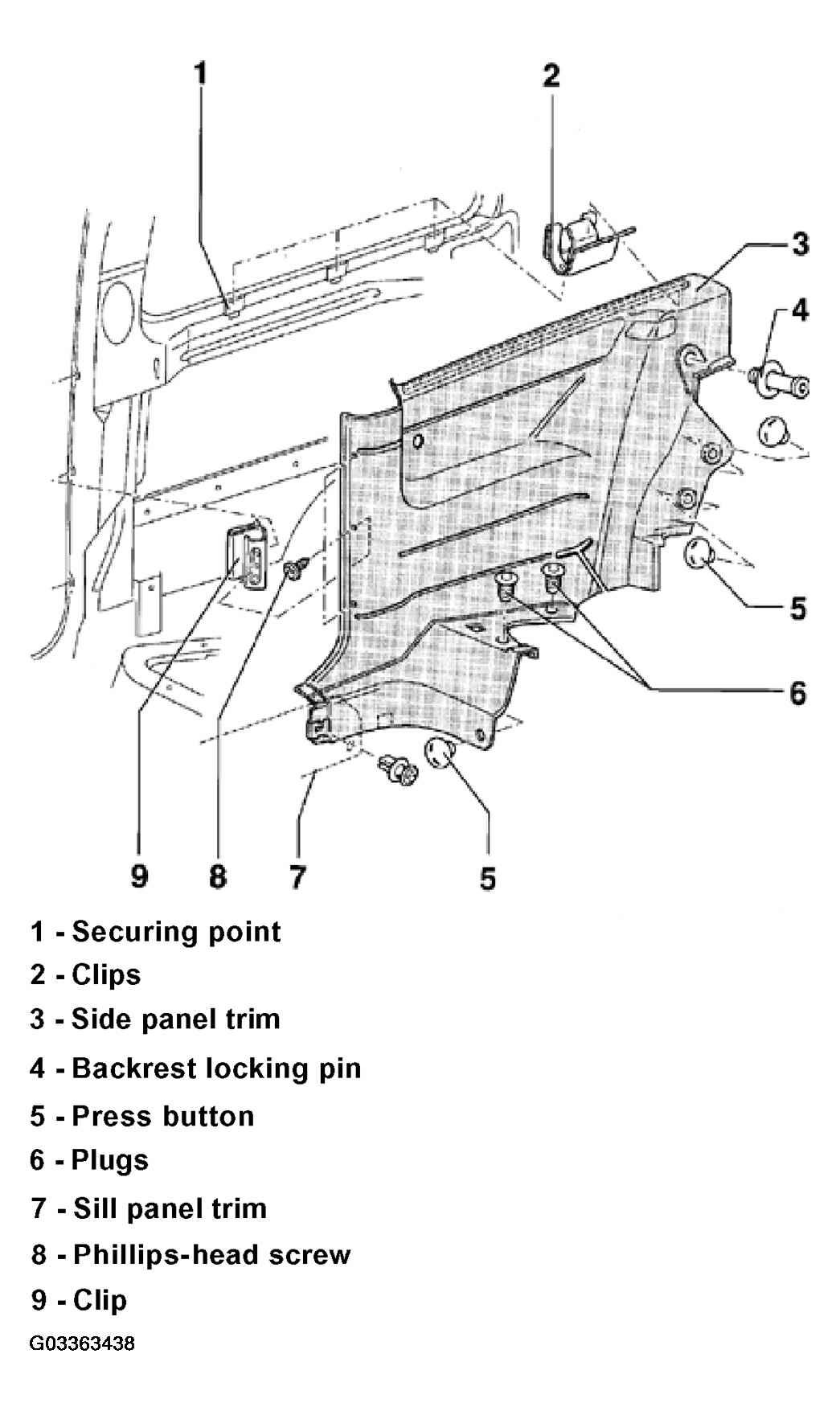

The following list refers to items in Fig 1.
- - Securing point
- For clips -2-
- - Clips
- Attached to flange (side window)
- - Side panel trim
Removing:
- Remove seat and backrest.
- Remove sill panel trim -7-. See SILL PANEL TRIM, REMOVING AND INSTALLING .
- Remove pin -4-, press button -5- and Phillips head screws -8-.
- Pry out plugs -6-.
- Pull trim off clips -2-.
- - Backrest locking pin
- - Press button
- Unscrew or push on
- - Plugs
- Pry out with lever 80-200
- - Sill panel trim
- With securing clip
- - Phillips-head screw
- - Clip
- For securing Phillips-head screws -8-.
