Jetta 1996 m.y. and up
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

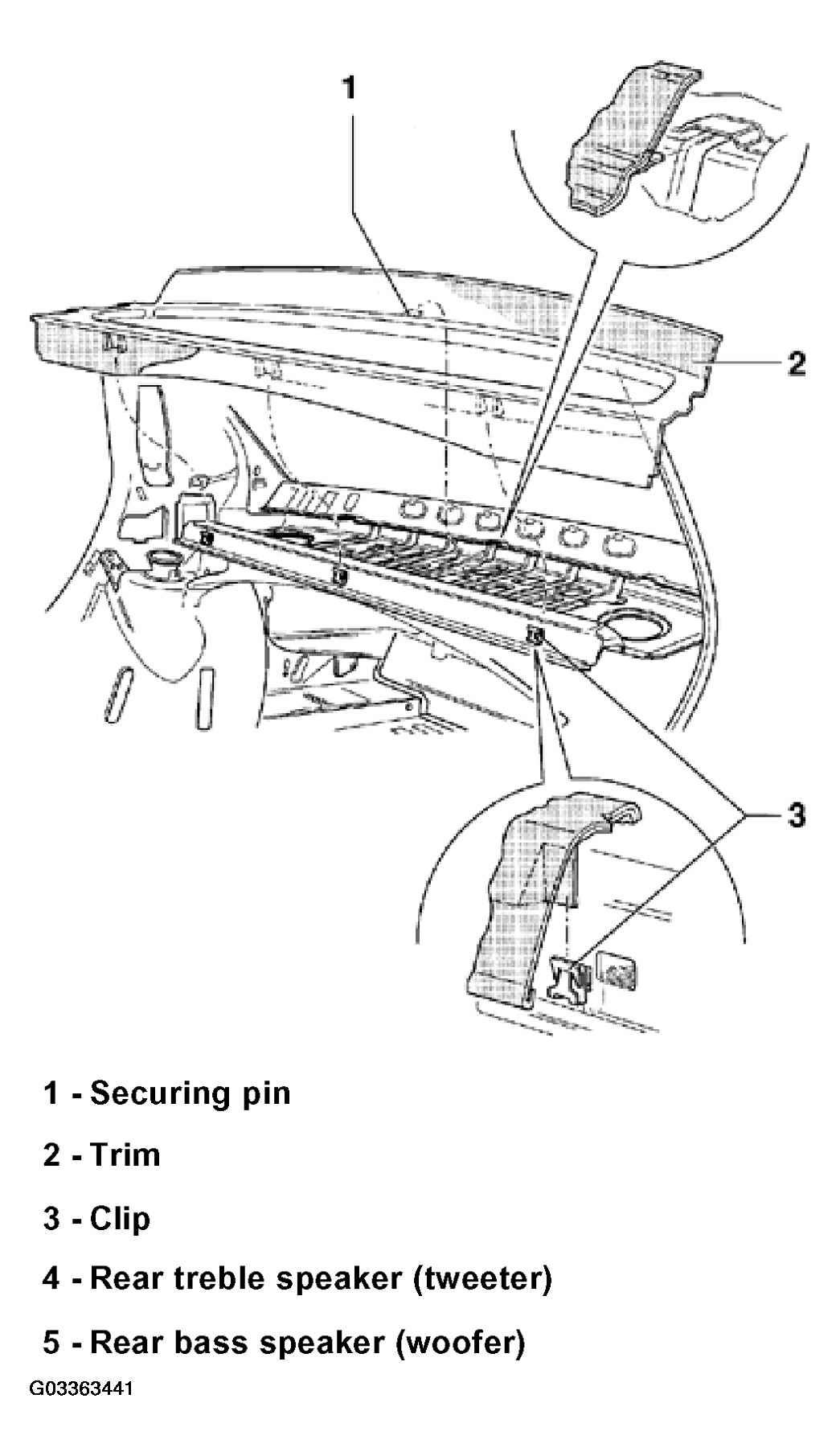

The following list refers to items in Fig 1.
- - Securing pin
- - Trim
- With holes for rear speakers - 4 - and - 5 -
Removing:
- Removing upper B-pillar trim. See GOLF 4-DOOR, JETTA .
- Removing upper C-pillar trim. See JETTA .
- Lift trim front edge and unhook from clips -3-
- Pull off front trim forward
- - Clip
- - Rear treble speaker (tweeter)
- Relocated from rear door trim
- - Rear bass speaker (woofer)
- Relocated from rear door tray
