Front door trim, removing and installing: Notes
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

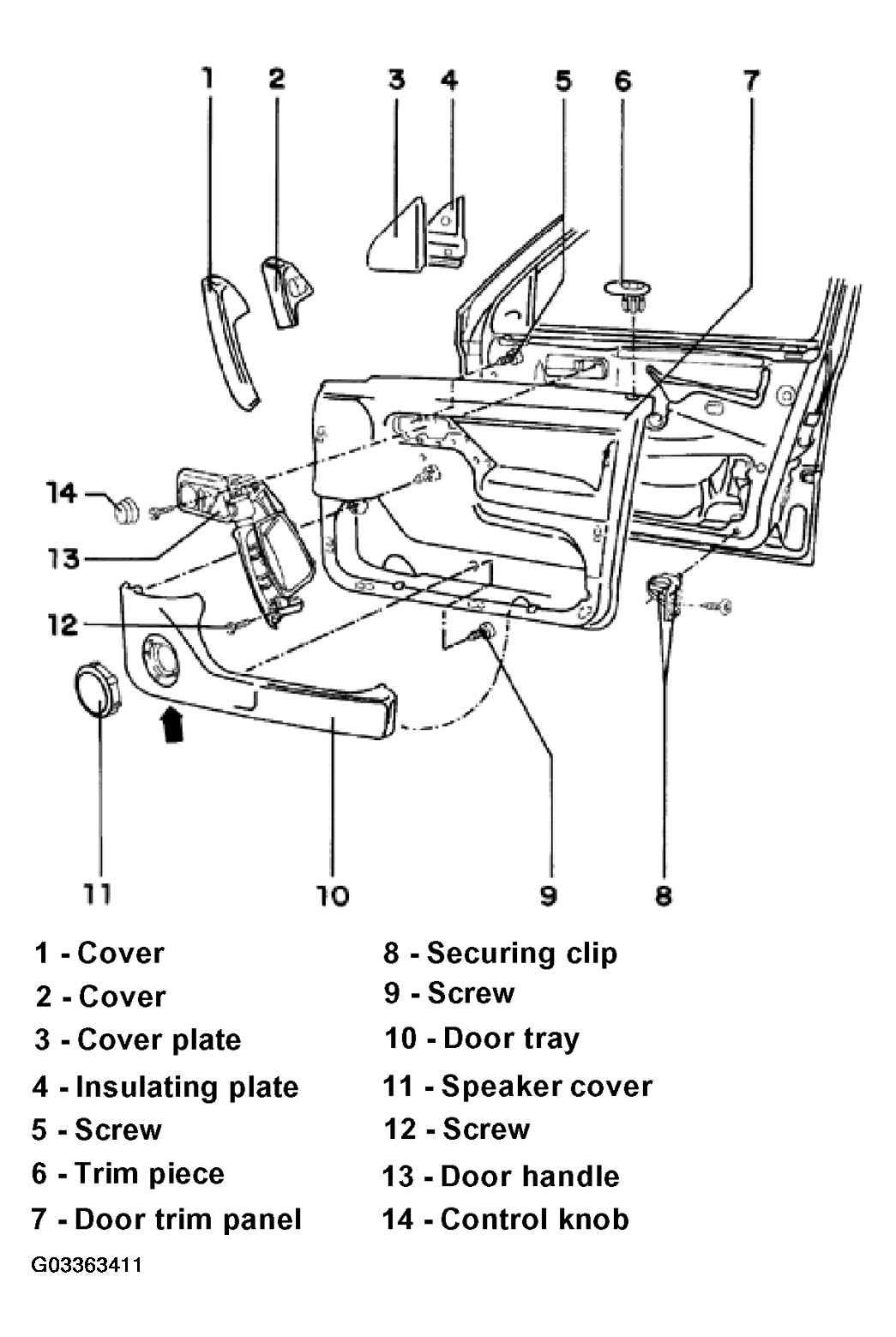

The following list refers to items in Fig 1.
- - Cover
- Clipped into door/door pull
- - Cover
- For vehicles with power windows
- Clipped into door/door pull
- - Cover plate
- Pull off of door frame (clipped)
- - Insulating plate
- - Screw
- To secure door handle
- Quantity: 6
- - Trim piece
- According to equipment level, with LED
- - Door trim panel
- Removing, see FRONT DOOR TRIM PANEL, REMOVING .
- Removing window crank, see WINDOW CRANK, REMOVING AND INSTALLING .
- - Securing clip
- Two-piece
- - Screw
- To secure door tray
- Quantity: 6
- - Door tray
- Secured by screws through rear of trim
- Speaker mounted to door tray
- - Speaker cover
- To remove press down retaining lugs using screwdriver through opening in door tray (arrow)
- - Screw
- - Door handle
- Secured by screw through rear of trim
- - Control knob
- Connected on inside opener plate
