Front door trim panel, removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Remove lock knob.

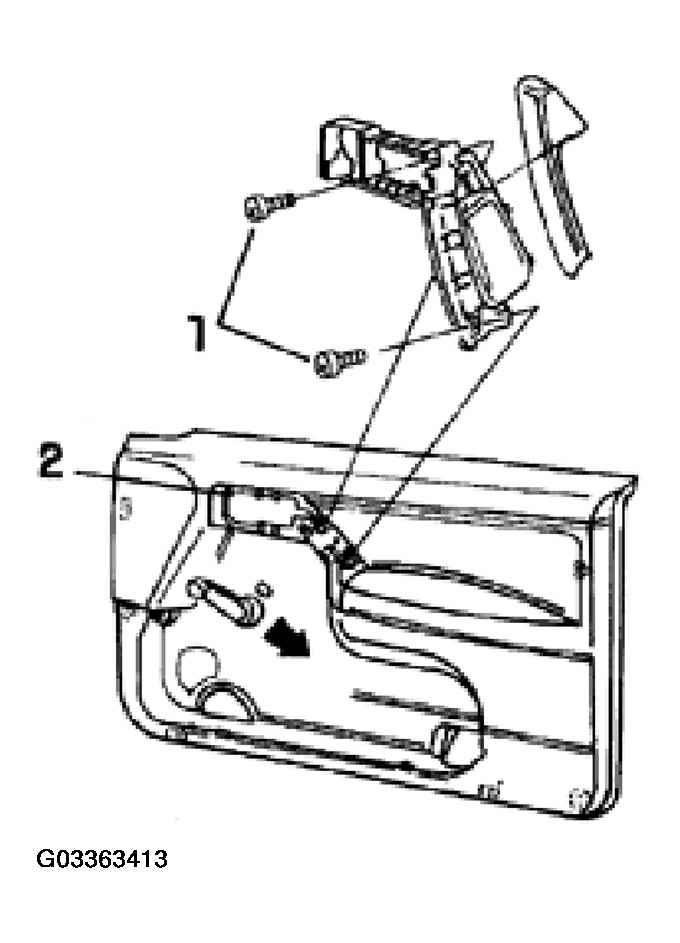

- Remove two grab handle attachment screws -1- and remove grab handle from door trim panel - 2-.
- Slide spacer ring between window crank and door panel in direction of arrow and then remove window crank.
- Using both hands, place fingers behind outside remote rear-view mirror control knob and pull toward you to remove knob.
- Pull inside door latch release lever trim piece straight out, bottom first then top.
- Remove top Phillips-head screw (in front of inside door release lever housing) for outside remote rear -view mirror control housing and door trim panel.
- Remove six Phillips-head door trim panel attachment screws around outer edge of door panel.

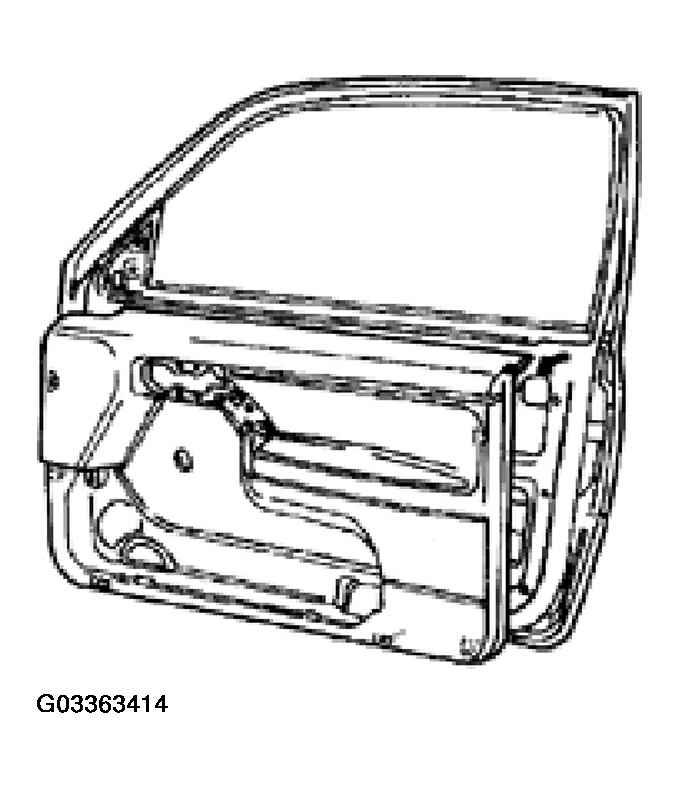

- Separate door panel from trim piece at top of door panel starting from either end, not both.CAUTION: DO NOT pull hard, this will cause door panel to break!NOTE: If door panel will not separate using moderate force, try moving the bottom of the door panel in and out while pulling out of door panel.
- Disconnect electrical connector for speaker.
- Disconnect electrical connector for anti-theft alarm system (driver's door only).
