Window (used), preparing for installation

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: When installing an undamaged window, cut back the remaining adhesive sealing material -1- to thickness of 1 to 2 mm (0.04 - 0.08 in.) using an electric cutter and VAG1561/10 blade with stop roller. Do not damage the pre-coating or the sealing lip with spacing lip -2-.

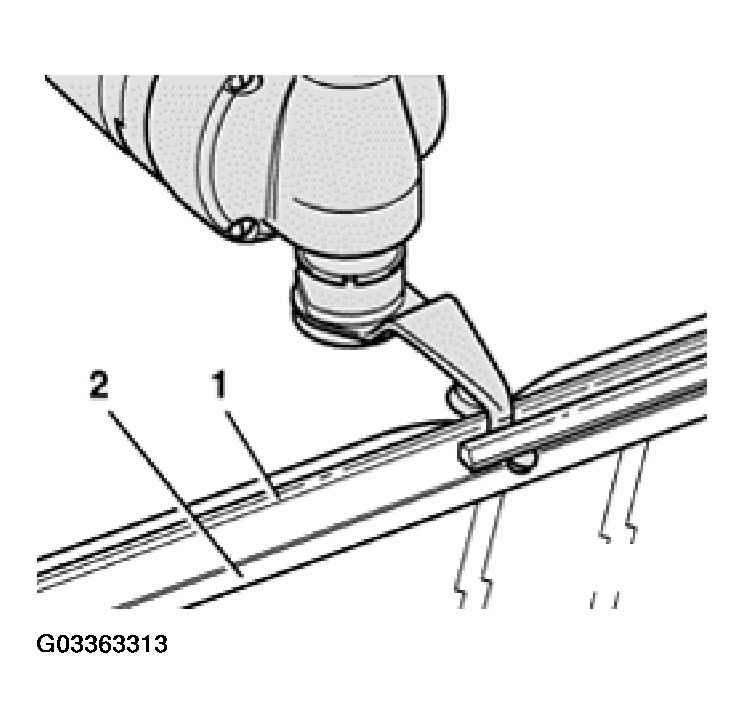

Fig 1: Identifying Adhesive Sealing Material And Spacing Lip (Used Window)

Do not damage spacing lip -1- or ceramic layer -2-.

Fig 2: Identifying Spacing Lip & Ceramic Layer (Used Window)
CAUTION:
- Do not prime adhesive surface, do not activate and do not treat with cleaning agent. Keep adhesive surface clean and free of grease.
NOTE: If the window is not installed (bonded) immediately after cutting back the old adhesive material, it must be activated before installation, refer to WINDOW (NEW), PREPARING FOR INSTALLATION .
