Window (new), preparing for installation

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

New windows are supplied pre-coated with PUR adhesive, parts -1-, -2- and -3-.

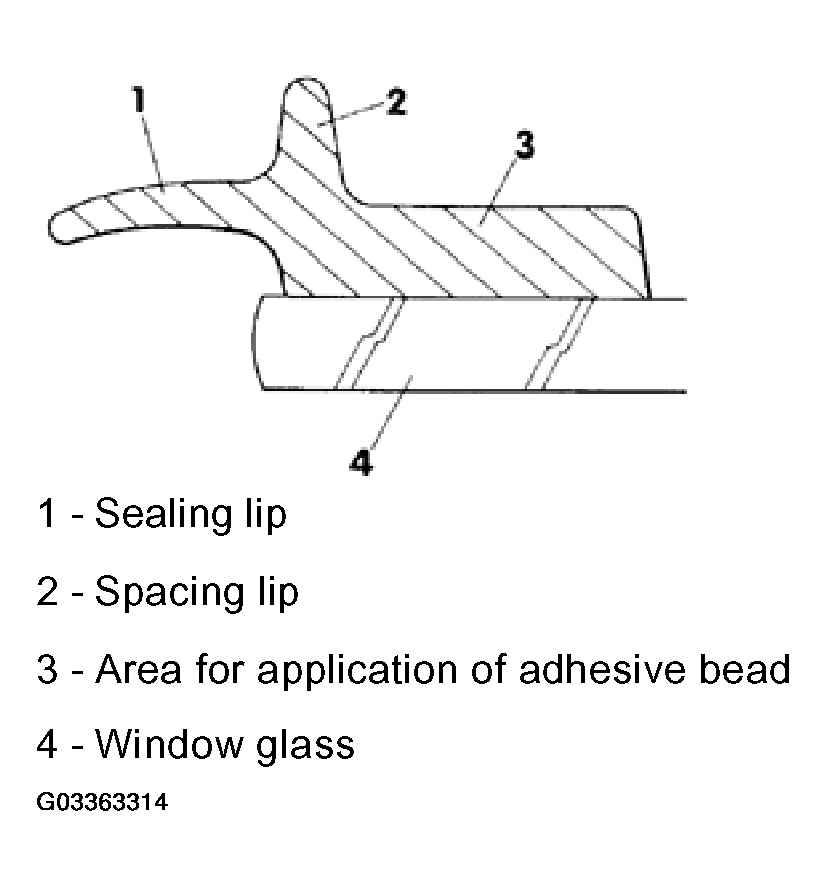

Fig 1: Identifying New Window Parts
G03363314
  1. - Sealing lip
  2. - Spacing lip
  3. - Area for application of adhesive bead
  4. - Window glass
    • Rub down pre-coating using dry cloth that is not fluffy.
      CAUTION:
      • DO NOT prime pre -coating and do not treat with cleaning agent.
      • Keep adhesive surface clean and free of grease.
    • Apply thin coat of activator AMV 181 800 01 only on window pre-coating -2- using applicator -1- (D 009 500 25 felt ball with wire).

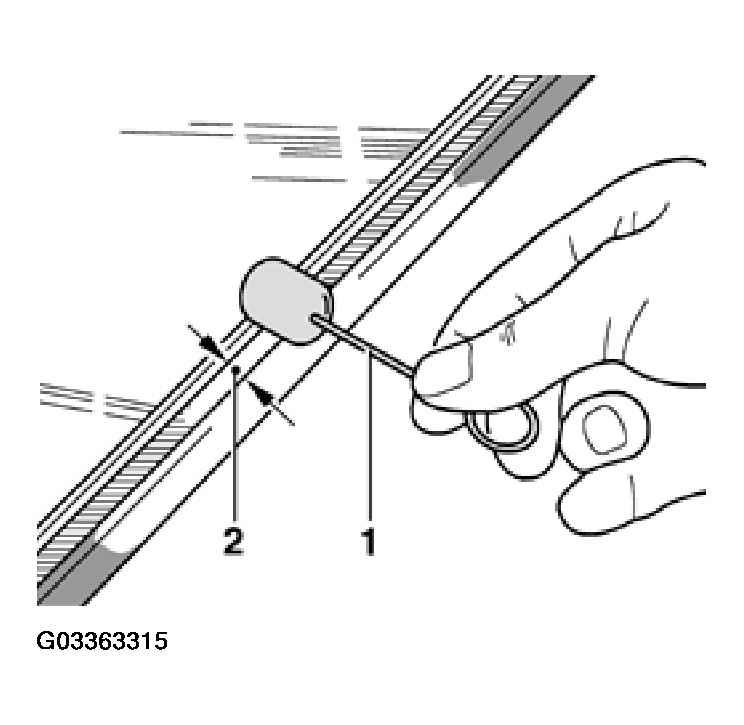

      • Fig 2: Applying Thin Coat Of Activator Only On New Window Pre-Coating Using Applicator
      G03363315
    • Allow activator to air dry for at least 10 minutes.
      CAUTION: Activator must NOT have contact with paint, otherwise the paint finish will be damaged.
