Door window regulator, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
- Door window, removing, refer to DOOR WINDOW, REMOVING
.

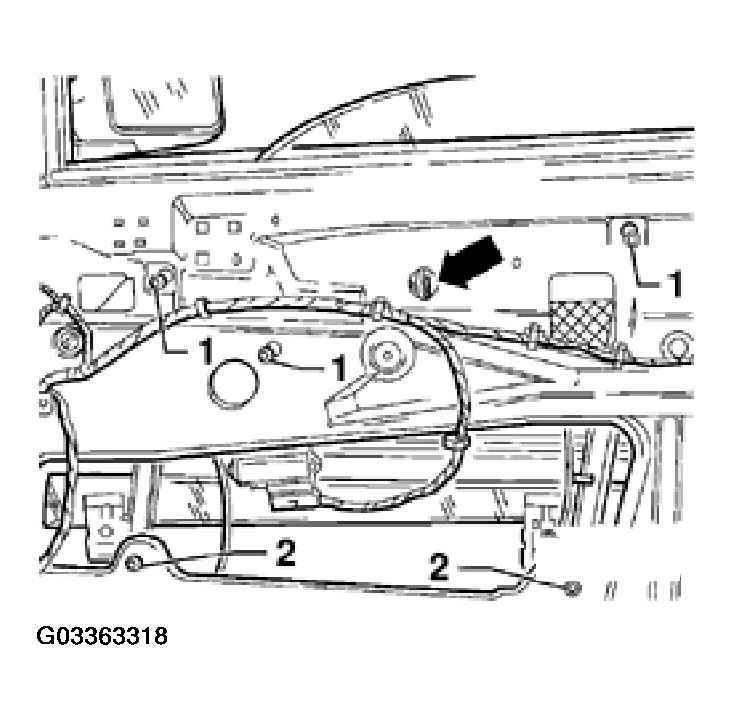

- Remove cable clip (arrow).
- Loosen hex-head screws -1- and -2-.
- Lift window regulator slightly so that hex -head screws -1- can be pulled through installation openings.
- Pull window regulator out downward through installation opening.
- Install in reverse order of removal.
Tightening torque (screws -2-): 10 N.m (7 ft lb)
