Bonded windshield, removing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Always wear protective goggles and leather gloves when removing and installing windshield.
- Unclip roof molding strips in A-pillar area.
- Remove front wiper arms (M8 hex nuts).
Tightening torque: 20 N.m (15 ft lb)

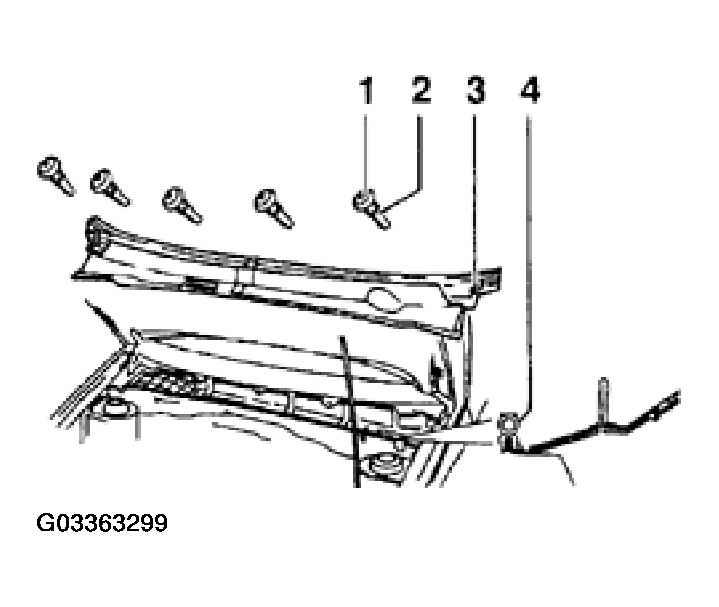

- Loosen screws -1- several turns (relieving tension from clip) and remove with clip.
- Remove seal -3- and remove plenum cover -4-.
- Turn eccentric counterclockwise set back from glass.
- Twist to remove inside rear-view mirror from adhesive plate.
- Remove sun visors (this provides clearance between window flange and molded headlining).
- Remove trim from A-pillars, refer to A-PILLAR TRIM, UPPER, REMOVING AND INSTALLING .
- Loosen sealing lip from window flange and spray in cleaning solution D 009 401 04 (as substitute for lubricant).
- Place cutting thread in window flange with help of tube (from VAG1755) (cutting wire may also be used).

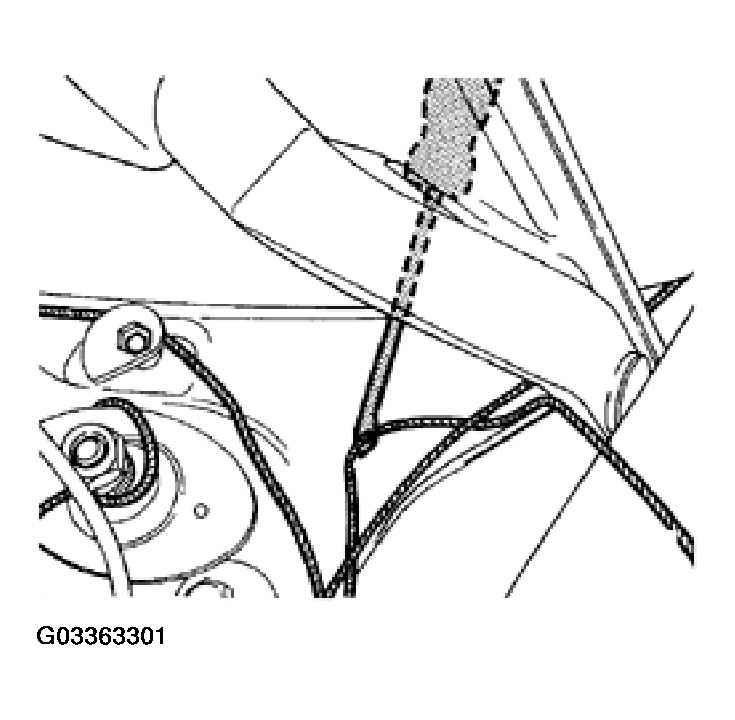

- Pull cutting thread through adhesive sealing material into inside of vehicle with broach (from VAG1474). Cutting thread is double up to windshield wiper shaft
- Secure outer end of thread to windshield wiper shaft.
- Secure inner end of thread to winding device.
- Attach VAG1654 winding device in position -I-.
- Move winding device to position -II-, position -III- and so on as necessary, and cut out windshield glass.
- Press cutting thread against window glass using plastic wedge during cutting process, in order to have access at window flange and instrument panel.
