A-pillar trim, upper, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

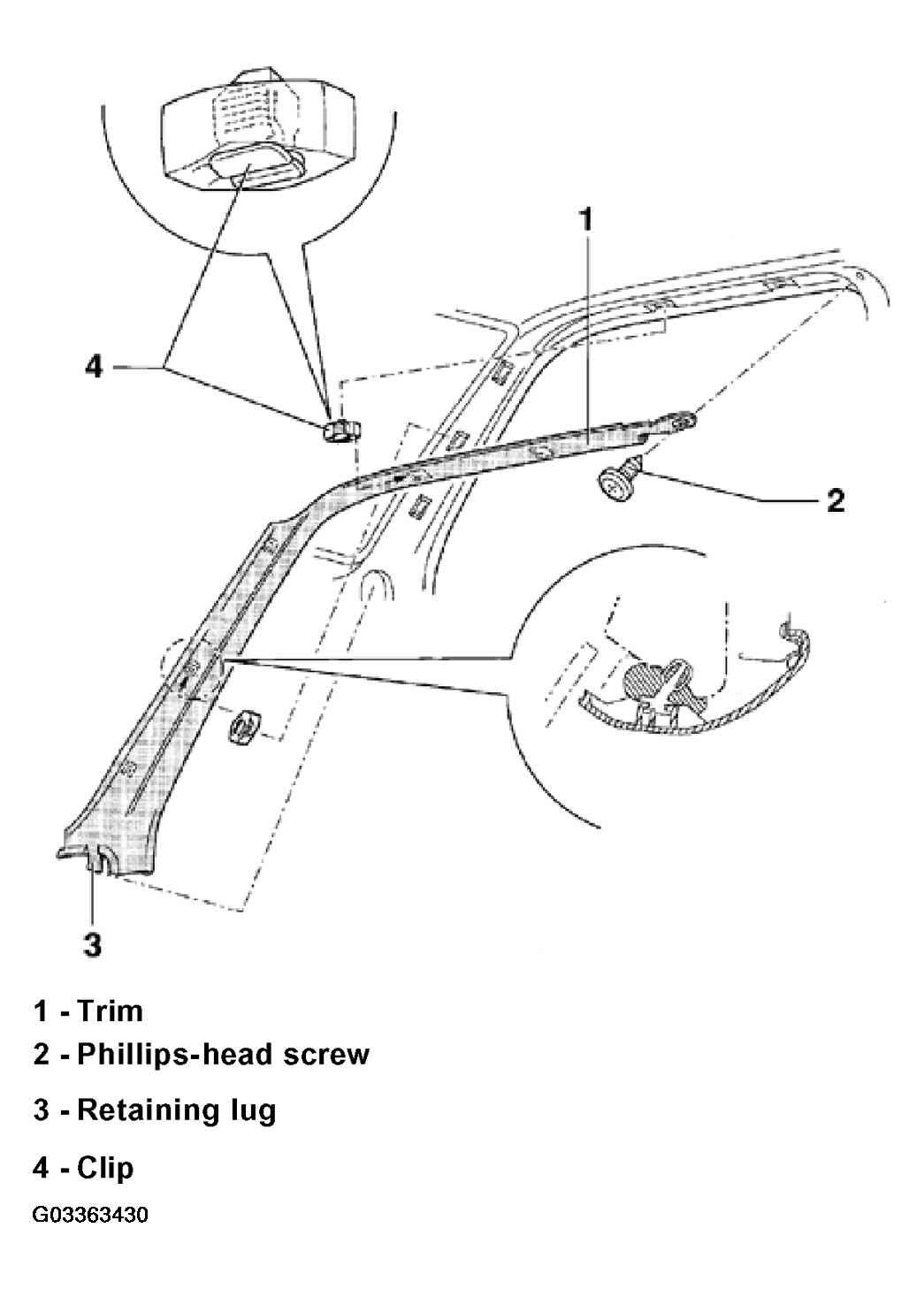

Trim fits over sealing flange of door inner seal, see Fig 1.
NOTE:
The following list refers to items in Fig 1.
- - Trim
Removing:
- Removing B-pillar trim (upper). See B-pillar trim, removing and installing .
- Remove Phillips-head screw -2-.
- Pull off and unhook retaining lugs -3-.
Installing:
- Check seating and condition of clips -4- and correct if necessary.
- Hook-in retaining lugs -3- first.
- - Phillips-head screw
- - Retaining lug
- - Clip
- With foam padding
- Pushed into A-pillar trim mount
