Bonded windshield, assembly overview
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

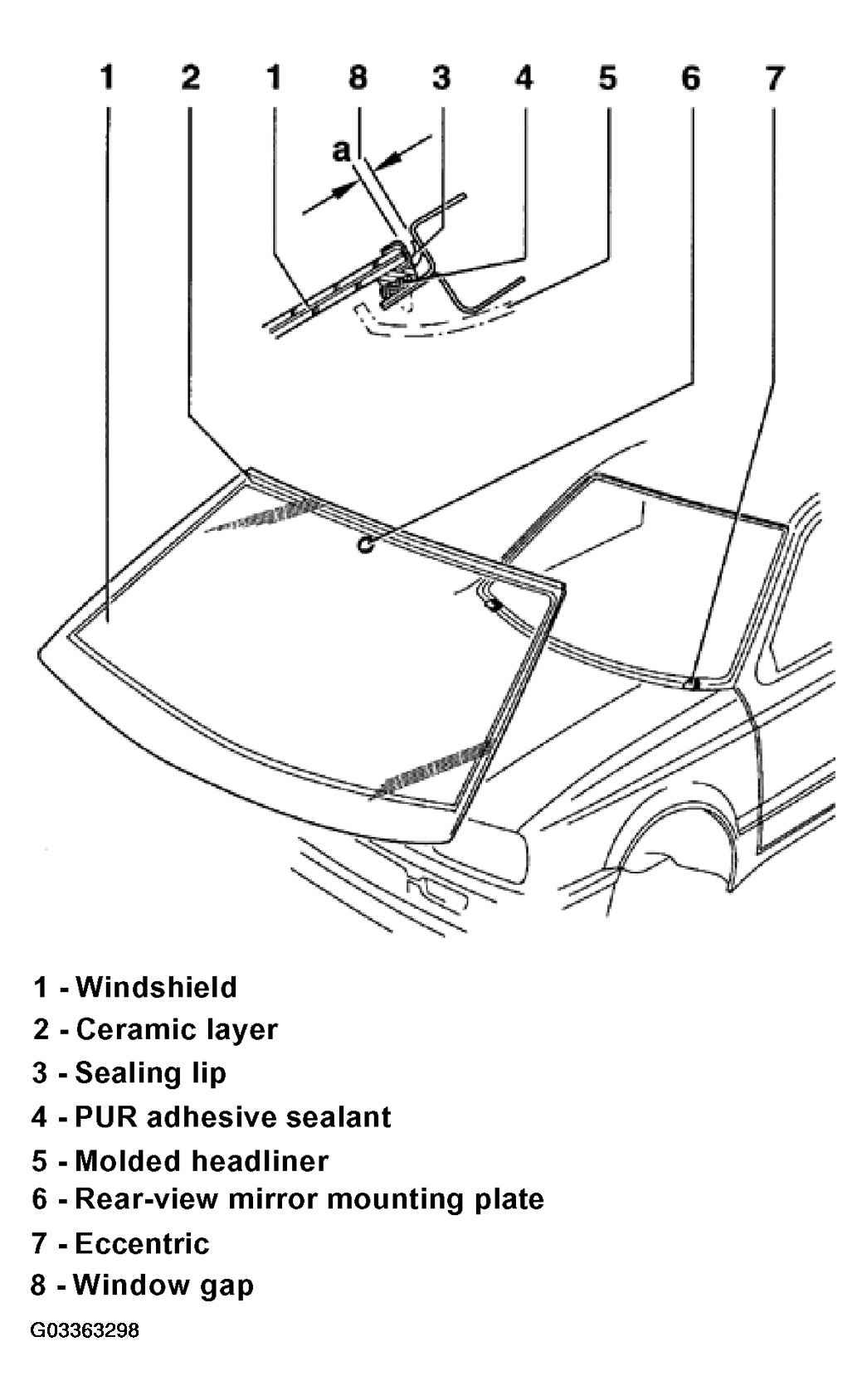

The following list refers to Fig 1
.
- - Windshield
- Removing, refer to BONDED WINDSHIELD, REMOVING .
- Installing, refer to BONDED WINDSHIELD, INSTALLING .
- - Ceramic layer
- - Sealing lip
- Component part of pre-coating
- - PUR adhesive sealant
Cross-section of bead:
- Width: 7 mm (0.28 in.)
- Height: 11 mm (0.43 in.) (including pre-coating, residual material on window glass and flange)
- - Molded headliner
- - Rear-view mirror mounting plate
- PUR adhesive
- - Eccentric
- To adjust window gap at top
- - Window gap
- Gap a- = 4 mm (0.157 in.)
