Rear door latch actuator, removing and installing: Removing

WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.

Remove rear door trim. See FRONT DOOR TRIM, REMOVING AND INSTALLING .
Partially remove vapor barrier. See VAPOR BARRIER, REPLACING UP TO 12.93 or VAPOR BARRIER, REPLACING 01.94 AND UP .
Disconnect bi-pressure hose -1- from actuator.
Disconnect multi-pin harness connector -2- at actuator.
Unhook pull and latch rods -3-.
Remove rear door latch with actuator. See DOOR LATCH AND OPERATING MECHANISM, REMOVING AND INSTALLING (front door latch).

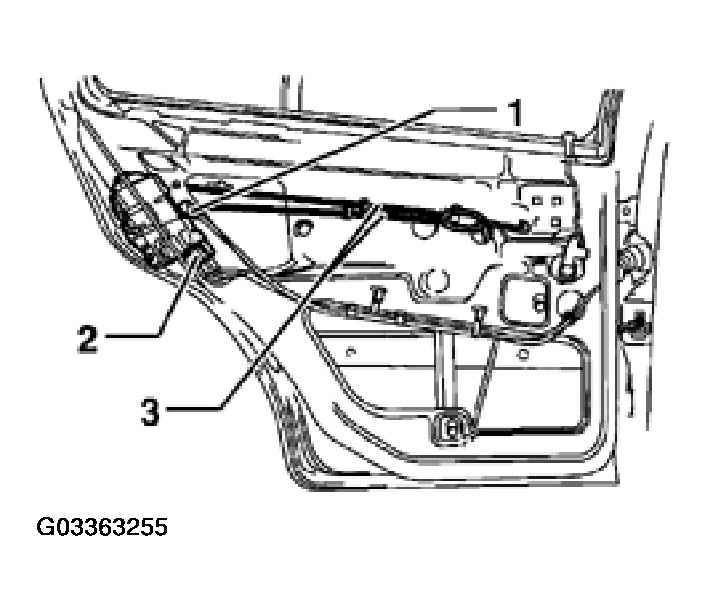

Fig 1: Disconnecting Bi-Pressure Hose, Multi-Pin Harness Connector & Unhooking Pull & Latch Rods (Rear Door)

Turn latch rotor to "closed" position.
Remove Torx(R) (T15) bolt -1-.
Open retainers (arrows) and disconnect actuator from door latch.

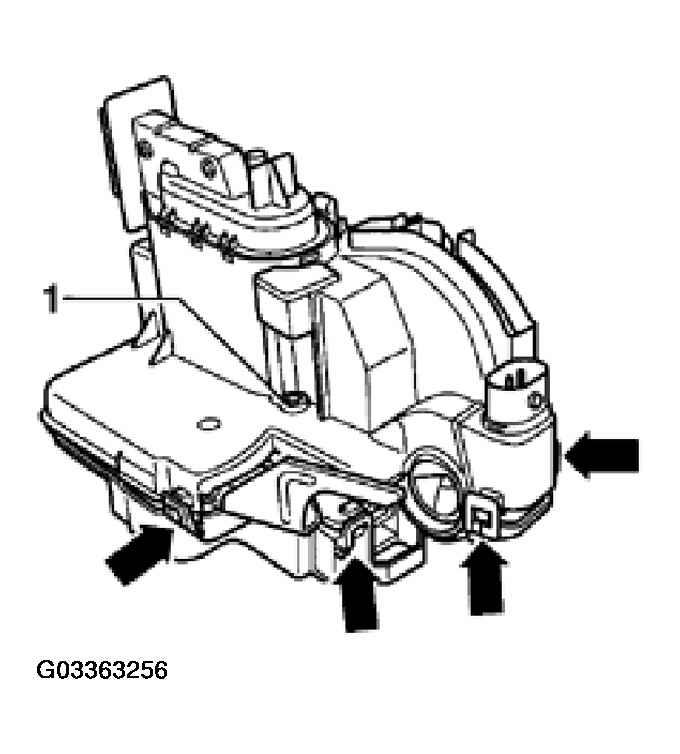

Fig 2: Removing Torx(R) Bolt & Opening Retainers (Rear Door)

When the actuator is removed, locking lever -1- slides out of the slot in striker -2-.

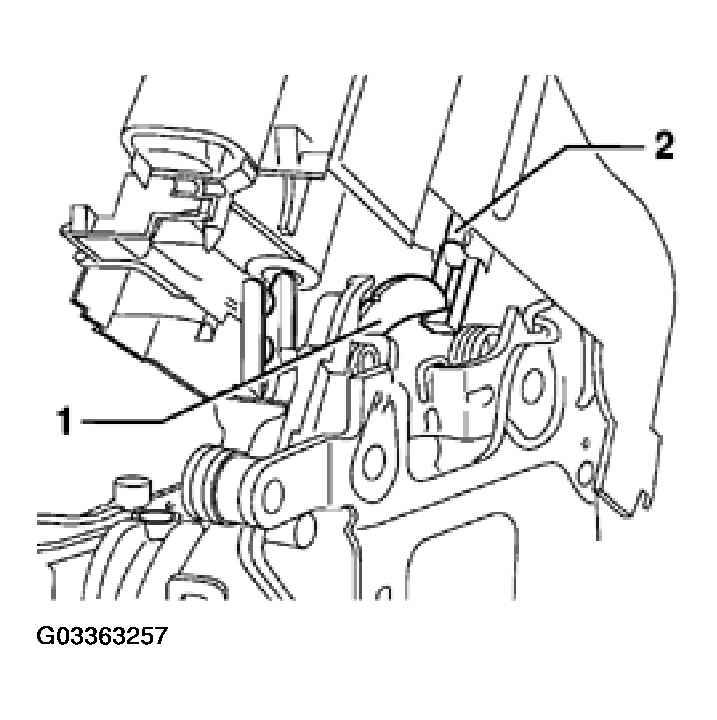

Fig 3: Sliding Locking Lever Out Of Striker (Rear Door)
