Door latch and operating mechanism, removing and installing
WARNING: This page does not describe the selected car, but rather 19 other vehicles, including the 1999 Volkswagen Jetta, 1999 Volkswagen Golf, 1999 Volkswagen GTI, 1998 Volkswagen Jetta, and 1998 Volkswagen Golf. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

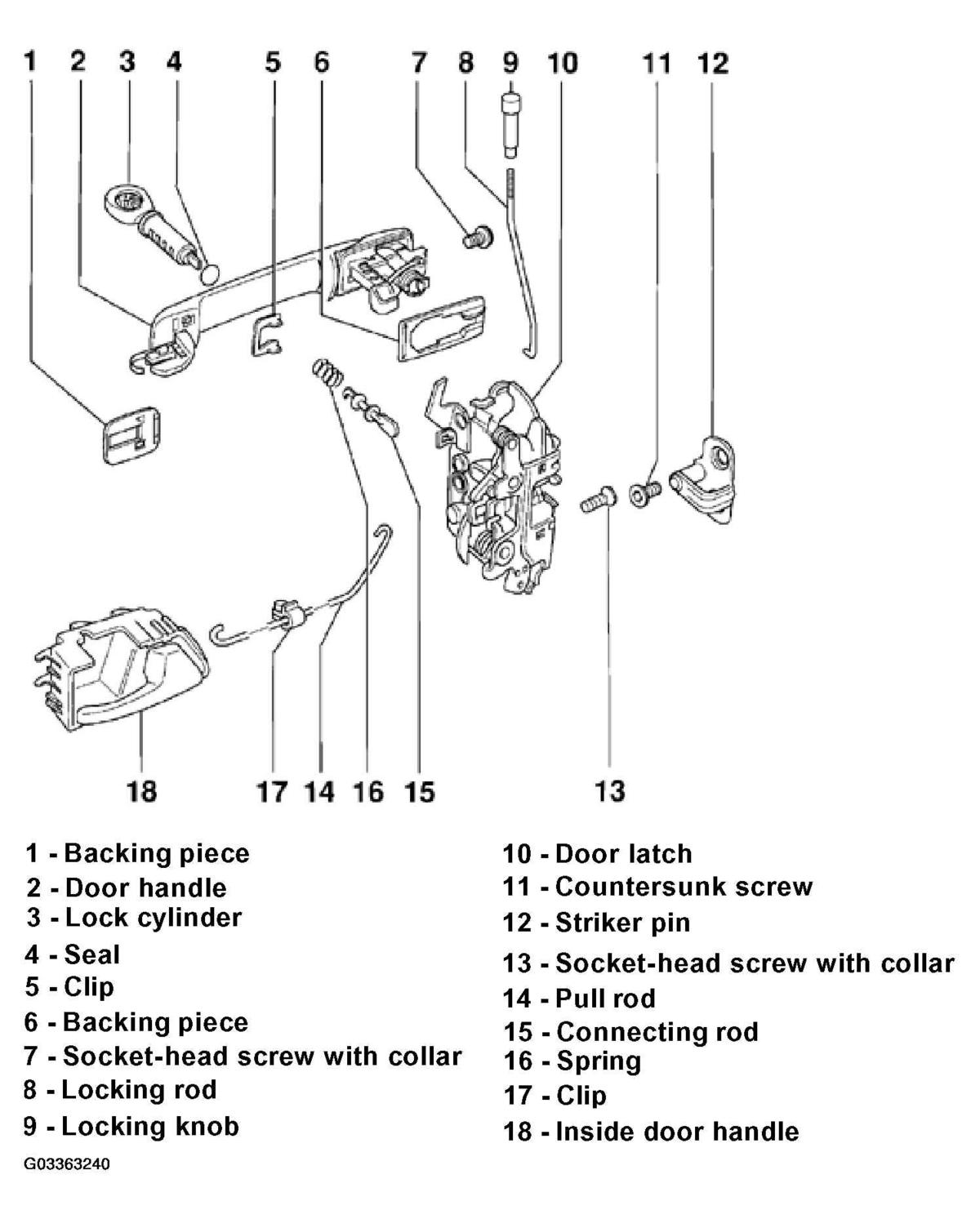

The following list refers to Fig 1
.
- - Backing piece
- - Door handle
- Removing and Installing. See DOOR HANDLE, REMOVING AND INSTALLING .
- - Lock cylinder
- Only remove with key inserted
- Lubricate with G 000 400 prior to installation
- - Seal
- - Clip
- - Backing piece
- - Socket-head screw with collar
- 8 N.m (71 in. lb)
- - Locking rod
- - Locking knob
- Threaded on
- - Door latch
- Removing and installing. See DOOR LATCH, REMOVING AND INSTALLING .
- Door window must be closed for removal and installation
- - Countersunk screw
- 8 N.m (71 in. lb)
- - Striker pin
- - Socket-head screw with collar
- 8 N.m (71 in. lb)
- - Pull rod
- - Connecting rod
- Attached in lock cylinder housing
- - Spring
- - Clip
- - Inside door handle
- Removing. See INSIDE DOOR HANDLE, REMOVING .
